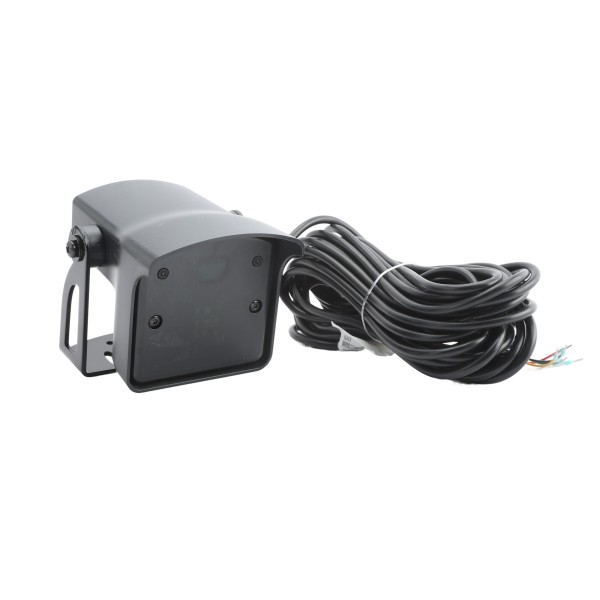

BEA 10FALCON Falcon Industrial Microwave Motion Detector

The Falcon Motion detector utilizes microwave technology that operates at 24.125 GHz (K-band frequency and can differentiate between vehicular traffic and pedestrians.
Part Number: 10FALCON

$258.70 each
OR


Details

BEA 10FALCON Falcon Industrial Microwave Motion Detector

The BEA Falcon Motion detector utilizes microwave technology that operates at 24.125 GHz (K-band frequency), meaning it can differentiate between vehicular traffic and pedestrians. The sensor is housed in a NEMA-4 rated plastic casing and features and a crimp style connector to prevent water intrusion through the feed cable. Even after it's installed, it's fully adjustable by remote control and sports a unidirectional sensing capability to acknowledge approaching or departing traffic.

Features:

  • Microwave and microprocessor
  • Mounting height: 11.5' to 23'
  • Rated IP65 For Weather Resistance
  • Tilt angle: 0° to 180° In Elevation
  • TTE 1999/5/EC And EMC 89/336/EEC Rated
  • Minimum Detection Speed: 2.2"/S (Measured In Sensor Axis)
  • Detection zone (Typical): Narrow pattern: 13' (W) x 16' for a mounting height of 16'
  • Sensitivity, Hold time, Detection Mode, Pedestrian and parallel traffic rejection mode, Relay Configuration Adjustable By Remote Control

Specifications:

  • Power Consumption: <2W
  • Main Frequency: 50 to 60 Hz
  • Hold time: 0.5s to 9s (Adjustable)
  • Max contact voltage : 42V AC/ DC
  • Max contact current: 1A (resistive)
  • Transmitter frequency: <24.125 GHz
  • Transmitter radiated power <20 dBm EIRP
  • Max switching power: 30W (DC) / 60 VA (AC)
  • Temperature range: -22°F to 122°
  • Dimensions: 5" (D) x 4" (W) x 3 3/4"; (H)
  • Bracket Material: Black anodized aluminum
  • Housing Material: NEMA 4-Rated ABS And Polycarbonate
  • Supply voltage: 12V to 24V AC +/- 10%, 12V to 24V DC +30%/-10%

BEA Falcon Manual

Additional Information

SKU 10FALCON
Product Motion Detector
Manufacturer BEA Industrial
