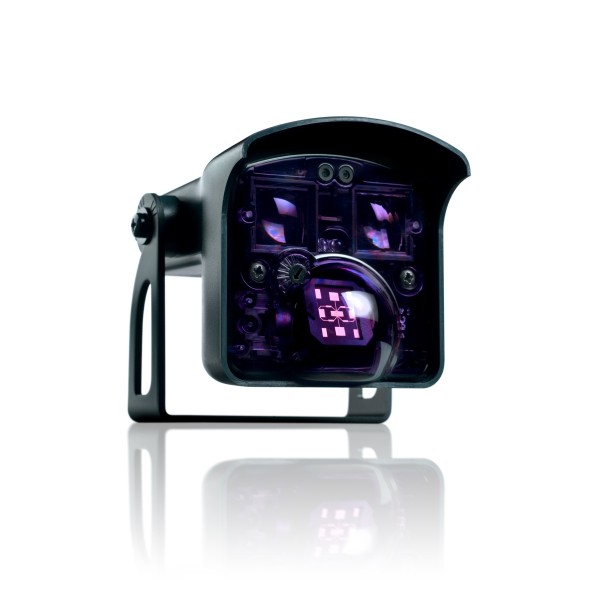

BEA IS40 Industrial Dual-Technology Motion & Presence Sensor - 10IS40

Key Features:

• Adjustable detection settings with six modes of detection filtering for microwave immunity and pedestrian / parallel traffic rejection
• Nine unique infrared patterns for flexible presence detection in industrial environments
• Remote control programming (remote sold separately) for safe configuration from ground level
• Bidirectional, unidirectional approach and depart microwave detection options for energy savings
• Rugged enclosure rated NEMA 4 / IP65 for harsh industrial environments
• Wide mounting height flexibility (8 ft to 16 ft)
• Dual-technology combining microwave Doppler radar and active infrared
• Two relay outputs (activation & presence) with LED indicators (green, red)

Specifications:

• Technology: Microwave Doppler Radar + Active Infrared
• Detection Modes: Motion & Presence
• LED Signals: Green (Activation Relay), Red (Presence Relay)
• Transmitter Frequency / Wavelength: 24.150 GHz / 875 nm
• Transmitter Power Density: Approx. 5 mW / cm sq. (microwave), Approx. 250 mW / msq. (infrared)
• Max Detection Field: 13 ft x 16 1/2 ft
• Output Hold Time: 0.5 s - 9 s (0.5 s for XL)
• Minimum Detection Speed: 2 in / s (0 in / s for XL to activate detection)
• Tilt Angle (relative to sensor face): -8 Degrees to 22 Degrees (or 15 Degrees to 45 Degrees)
• Mains Frequency: 50 - 60 Hz
• Power Consumption: Approx. 3.5 W
• Outputs (Relay): 2 change-over contacts free of potential
• Max Contact Voltage: 42 VAC / VDC
• Max Contact Current: 1 A (resistive)
• Max Switching Power: 30 W (DC) / 48 VA (AC)
• Installation / Mounting Height: 8 ft - 16 ft
• Temperature Range (Operating): -22 Degrees F to 140 Degrees F
• Dimensions: 3 3/4" (W) x 4" (H) x 5" (L)
• Material: ABS & Polycarbonate
• Cable Length: 32 ft
• Degree of Protection / Enclosure Rating: NEMA 4 / IP65
• Norm / Compliance: R&TTE 1999 / 5 / EC; EMC 2004 / 108 / EEC
