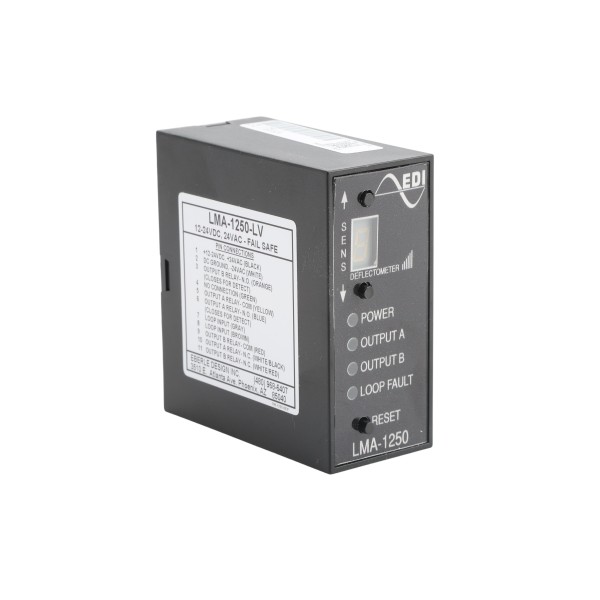

Linear Single Channel Dual Transistor Vehicle Loop Detector - 2500-2377

The Linear LMA-1250LV 2500-2377 Single Channel Dual Transistor Vehicle Loop Detector provides high quality vehicle detection guaranteed to improve the performance and lifecycle of access control systems.
Part Number: 2500-2377
$327.39 each
$327.39 each
OR


Details

Linear Single Channel Dual Transistor Vehicle Loop Detector - 2500-2377

The Linear LMA-1250LV 2500-2377 Single Channel Dual Transistor Vehicle Loop Detector provides high quality vehicle detection guaranteed to improve the performance and lifecycle of access control systems. Its simple and accurate trouble-shooting interface will allow for quick installation with reliable vehicle detection services and with four sensitivity and four frequency levels, it's a versatile element of any gate system.

Features:

  • Fail-Safe
  • Automatic Tuning
  • 4 Frequency Levels
  • Color-Coded LED Indicators
  • Lighting And Surge Protection
  • 4 Sensitivity Levels With Sensitivity Boost
  • Compatible With All Radio Controls And Remote Openers

Specifications:

  • Relays: NC, NO, C
  • Input Power: 12VDC, 24V AC/DC
  • 11-Pin Male Molex Amphenol Connector
  • Dimensions: 2.875" (H) x 1.375" (W) x 3.0625" (D)
  • Wide Loop Inductance Range: 20 - 2500 microHenries
  • Operating Temperature: -30º F To 165º F

2500-2377 Specifications

SKU 2500-2377
Product Loop Detector
Product Type Loop Detectors
Loop Channels Single Channel
Voltage 12-24V AC/DC
Pin 11 Pin
Secure Side Status Optional
Manufacturer Linear Corp. LLC.
