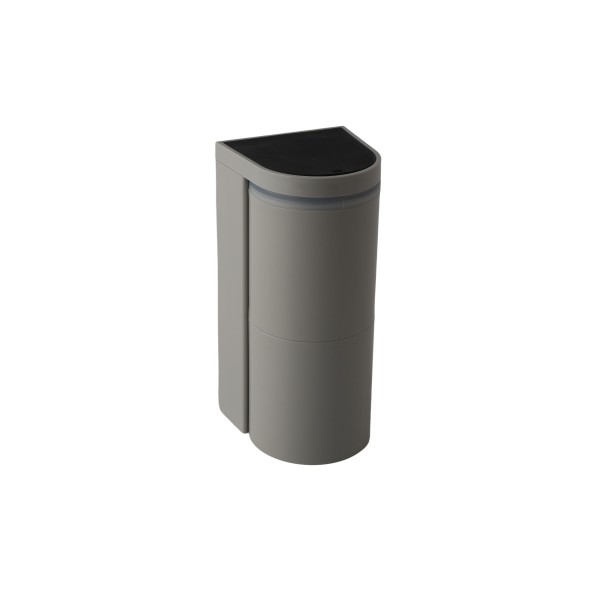

OPTEX 26' Range Vehicle Presence Sensor Virtual Loop (Light Gray) - OVS-02GTGR

Details

OPTEX 26' Range Vehicle Presence Sensor Virtual Loop (Light Gray) - OVS-02GTGR

The OPTEX 26' Range Vehicle Presence Sensor Virtual Loop is an advanced vehicle presence sensor designed for gates and barriers, eliminating the need for in-ground loops. Utilizing cutting-edge Distance Measuring Radar technology, it detects vehicles of all sizes while filtering out most pedestrian movement. This sensor is perfect for gate activation, protection, and shadow detection applications, making it an excellent choice for residential, commercial, and industrial settings. With a range of up to 26 feet, it ensures reliable and efficient vehicle detection in various environments.

Features:

• Advanced Distance Measuring Radar for accurate vehicle detection
• Eliminates the need for cutting, coring, or drilling into concrete or asphalt
• Smartphone app integration for easy configuration and adjustments
• IP66 & NEMA4 rated for water resistance and harsh weather conditions
• Visible indicator for status monitoring and troubleshooting
• Direct conduit access for simple installation
• Compatible with single gang boxes and OPTEX Mini Posts

Specifications:

• Detection range: 7 ft to 26 ft (adjustable in 20-inch increments)
• Power supply: 12-24V AC/DC
• Operating temperature: -22 Degrees F to 122 Degrees F (-30 Degrees C to 50 Degrees C)
• Vehicle detection speed range: 1.2 to 22 mph (2 to 35 km/h)
• Relay output: Non-voltage solid-state relay (30VDC, 0.3A) and mechanical relay (30VDC, 1A)
• Adjustable sensor angle: 96 Degrees
• Installation height: 20 inches from the road surface
• Presence detection timer: 5, 15, 60, 180 minutes, or infinite
• Built-in heater for improved functionality in extreme weather
