AES E-Loop In-Ground Commercial Exit mode - EL00IG-K

AES E-Loop In-Ground Commercial Exit mode - EL00IG-K

The Commercial Inground Loop is an inground wireless vehicle detection system that uses magnetometer sensors to ensure transmission is sent to the gate to either open or close. It is one of the safest ways to ensure any accidents do not happen near your gate. This is a kit that includes an e-Trans 50 transceiver and magnet. This is an exit-mode-only model.

Part Number: EL00IG-K

$451.36 each
$451.36 each

Details

AES E-Loop In-Ground Commercial Exit mode - EL00IG-K

This commercial e-loop made for exit mode only is an inground wireless vehicle detection system that utilizes magnetometer sensors to detect vehicle movements. This kit includes one e-Trans 50 transceiver and magnet. When a vehicle is detected, the information is transmitted to a transceiver for gate activation. This sensor is installed near the exit where the gate or passageway is using Sikaflex. This system has a replaceable Lithium battery and can handle any vehicle weight. Gates and door controllers must have an open input and auto close function enabled.

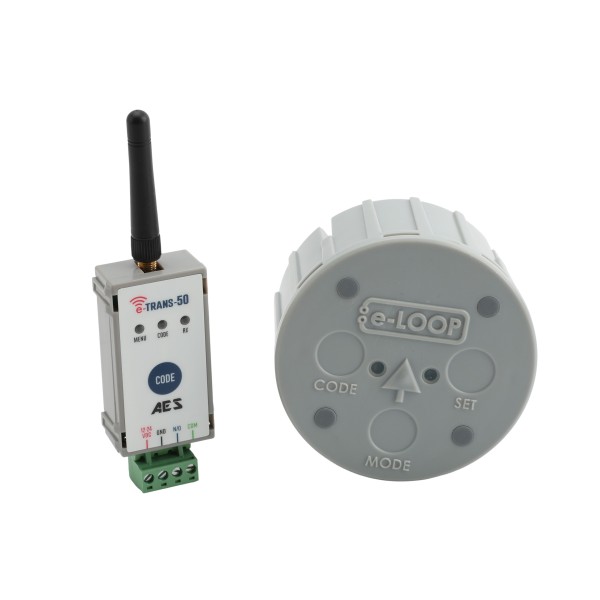

Kit Includes:

E-Loop Inground Exit Mode
E-Trans 50 Transceiver
Magnet

Key Features:

Easy Installation
10-Year Battery Life
Reliable Radio Communications With Transceivers
High Security 128-Bit AES Encryption
Exit Detection Mode
8 Hz Sampling Rate
Auto Calibration
IP68 Ingress Protection

Specifications:

Frequency: 433.39 MHz
Modulation: FSK
Bitrate: 9.6 KBPS
Bandwidth: 250 kHz
Antenna Type: PCB
Nominal Output Power: 10 dBm
Receive Sensitivity: -126.2 dBm
Security: 128-Bit AES Encryption
Power: 4 * 3.6 V 2700ma
Operating Temp: -4°F To 176°F

SKU	EL00IG-K
Product	E-Loop Kit
Loop Type	Magnetometer Detection
Product Type	Wireless Loops
Installation Method	In-Ground
Manufacturer	AES Global, LLC
