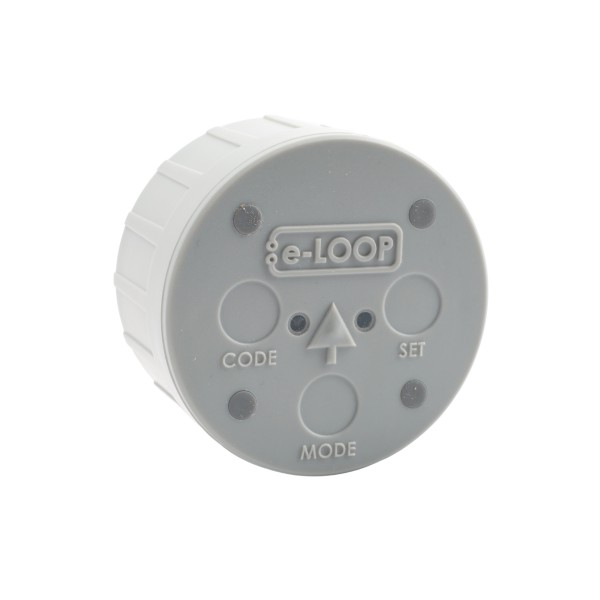

AES E-Loop In-Ground Commercial Radar loop only PRESENCE MODE - EL00IG-RAD

This commercial radar e-loop made for presence mode only is an inground wireless vehicle detection system that utilizes magnetometer sensors to detect vehicle movements. When a vehicle is detected, the information is transmitted to a transceiver for gate activation. This sensor is installed near the entry of a gate or passageway using Sikaflex. This system has a replaceable Lithium battery and can handle any vehicle weight. Gates and door controllers must have an open input and auto-close function enabled. The radar sensor works to detect vehicles that are stopped on top of the e-loop. Using radar and magnetometer sensors, the vehicle radar loop can sense a vehicle even if the magnetic field drops. Change radar settings with the e-diagnostics remote.

Key Features:

• Easy Installation
• Set Radar Settings Including Dead Zones, Sensitivity, And Magnetic Field Release Levels
• 6-Year Battery Life
• Reliable Radio Communications With Transceivers
• High Security 128-Bit AES Encryption
• Exit Detection Mode
• 8 Hz Sampling Rate
• Auto Calibration
• IP68 Ingress Protection

Specifications:

• Frequency: 433.39 MHz
• Modulation: FSK
• Bitrate: 9.6 KBPS
• Bandwidth: 250 kHz
• Antenna Type: PCB
• Nominal Output Power: 10 dBm
• Receive Sensitivity: -126.2 dBm
• Security: 128-Bit AES Encryption
• Power: 4 * 3.6 V 2700 mA
• Operating Temp: -4°F To 176°F
