AES ELPRO S40 Control Unit - 7280L

Capable of managing up to four bollards, the S40 control unit offers advanced sequencing, diagnostics, and accessory integration for commercial and municipal access control environments.
Part Number: 7280L
$426.16 each
$426.16 each
OR


Details

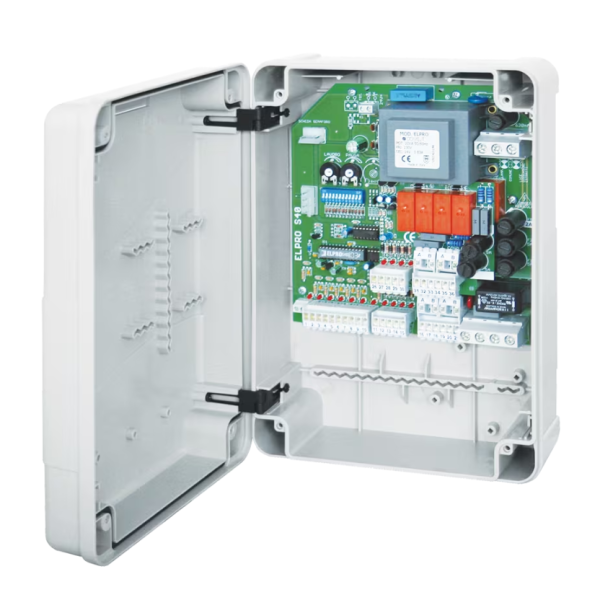

AES ELPRO S40 Control Unit - 7280L

The AES ELPRO S40 Control Unit controls up to four retractable hydraulic or semi-automatic bollards and provides advanced I.S.C. (Intelligent Safety Check) diagnostics for each connected post. The unit includes connections for traffic lights, flashing LEDs, limit switches, and optional heating modules. It supports various command modes including deadman (hold-to-run), time clock-based activation, and pedestrian-only configurations. Designed for compatibility with the AES Master-Slave system, the S40 can also synchronize multiple bollard sets across large installations, such as campuses, business parks, or urban access lanes.

Specifications

  • Max bollards: 4
  • Power input: 230V 10%, 50Hz
  • Operating range: -40 Degrees C to 80 Degrees C
  • Diagnostic: Full I.S.C. self-check with LED indicators
  • Enclosure: IP55 polycarbonate case

Features

  • Operates up to four retractable or semi-automatic bollards
  • Supports 3-lamp traffic lights, flashing LEDs, and audible beepers
  • Master-Slave support for multi-point bollard synchronization
  • Optional integration with Elpro heater kits and photocells
  • Designed for commercial entry points, civic protection, and parking infrastructure
Prefer to Call? (888) 378-1043

Questions about part number 7280L?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 7280L
Product Type Bollard Control Unit
Manufacturer AES Global, LLC
Installation Guide Download PDF file
