AES ELPRO S50-T1 Control Unit - 9097L
Details

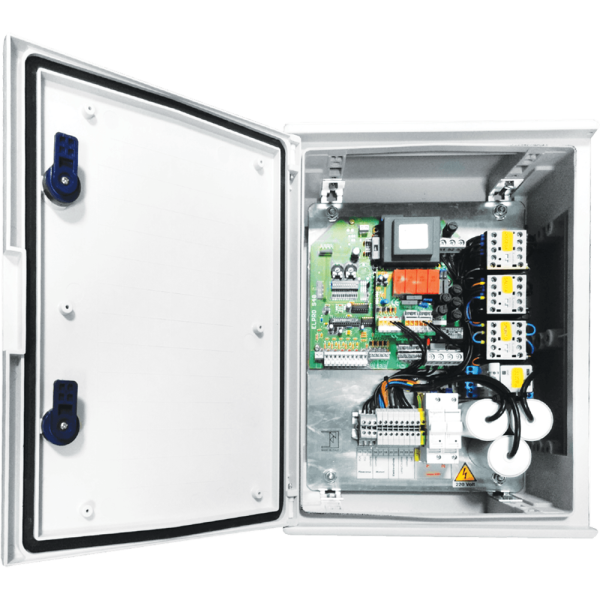

AES ELPRO S50-T1 Control Unit - 9097L
The AES ELPRO S50-T1 Control Unit controls one M50 or M30 hydraulic bollard with standard oil-hydraulic lift cycles. It does not include EFO capabilities but supports limit switches, 3-lamp traffic lights, and optional LED lighting and heater kits. It provides prewired control for up/down sequencing, pedestrian mode, and safety input management. Designed for daily operation of high-resistance bollards, this controller provides a secure, centralized interface for routine access control at sensitive locations.
Specifications
- Max bollards: 1 (M30 or M50)
- Power: 230V 10%, 50Hz
- Control: Full up/down automation with LED diagnostics
- Interface: Magnetic switches, timers, solenoids
- Enclosure: IP55-rated, surface-mount
Features
- Standard hydraulic lift cycle support for one bollard
- Deadman, step-by-step, and pedestrian functions supported
- 3-lamp traffic light compatibility and LED safety lighting
- Perfect for single-lane anti-ram installations and gated sites
SKU | 9097L |
---|---|
Product Type | Bollard Control Unit |
Compatible Series | S50 |
Manufacturer | AES Global, LLC |
Installation Guide | Download PDF file |
