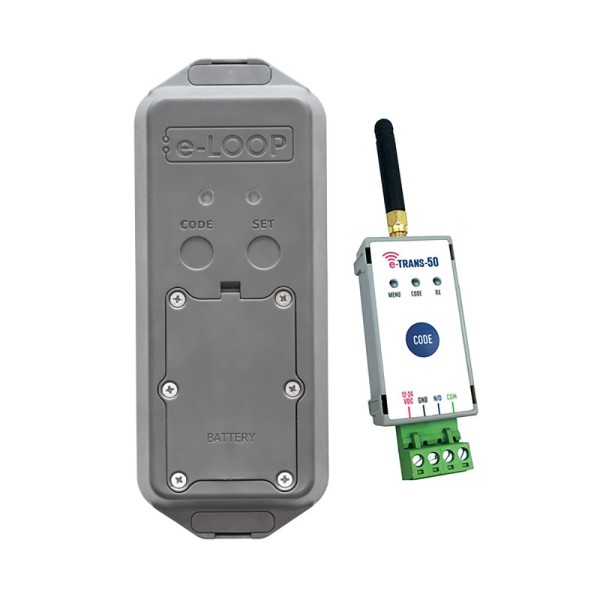

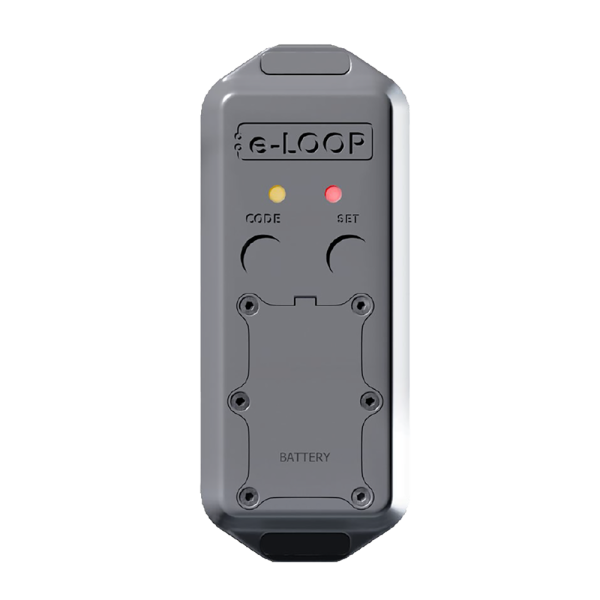

AES Post Mounted Wireless E-Loop Kit - EL00PM-RAD-K

The AES Post Mounted Wireless E-Loop Kit provides reliable vehicle detection using a combination of magnetic sensors and radar. With a 164-foot radio range and 128-bit AES encryption, this self-contained loop alternative is ideal for secure, above-ground installations.
Part Number: EL00PM-RAD-K
$559.73 each
$559.73 each
OR


Details

AES Post Mounted Wireless E-Loop Kit - EL00PM-RAD-K

The AES Post Mounted Wireless E-Loop Kit (EL00PM-RAD-K) is a smart solution for wireless vehicle detection without the need for ground-cut loops. It combines dual magnetic sensors and radar technology to detect approaching vehicles with high precision. Operating on a 433.39 MHz frequency with 128-bit AES encryption, it ensures secure signal transmission up to 164 feet away. Designed for installation 24 inches above ground, this unit is powered by two included AA lithium batteries and offers up to three years of maintenance-free performance, making it ideal for driveways, gates, or industrial entry points.

Features:

  • Wireless vehicle detection without cutting ground loops
  • Dual technology using radar and magnetic sensors
  • Long-range signal up to 164 feet
  • Secure 128-bit AES encrypted communication
  • Maintenance-free for up to 3 years
  • Ideal for driveways, gates, and industrial access points

Specifications:

  • Detection Method: 3-Axis Magnetometer + Radar
  • Frequency: 433.39 MHz
  • Radio Range: Up to 164 ft
  • Detection Range: Up to 9.8 ft
  • Mounting Height: 23.6" Above Ground
  • Battery: 2x AA Lithium 1.5V (Included)
  • Battery Life: Up to 3 Years
  • Ingress Protection: IP68
Prefer to Call? (888) 378-1043

Questions about part number EL00PM-RAD-K?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU EL00PM-RAD-K
Commercial Driveway Width 10 ft.
Residential Driveway Width 10 ft.
Frequency 433 MHz
Product E-Loop
Power Supply 12V
Unit Type Complete Unit
Usage Exterior
Loop Type Magnetometer/Radar Detection
Mount Type Pedestal/Surface Mount
Color Black
Product Type Loops
Manufacturer AES Global, LLC
Specification Sheet Download PDF file
Installation Guide Download PDF file
