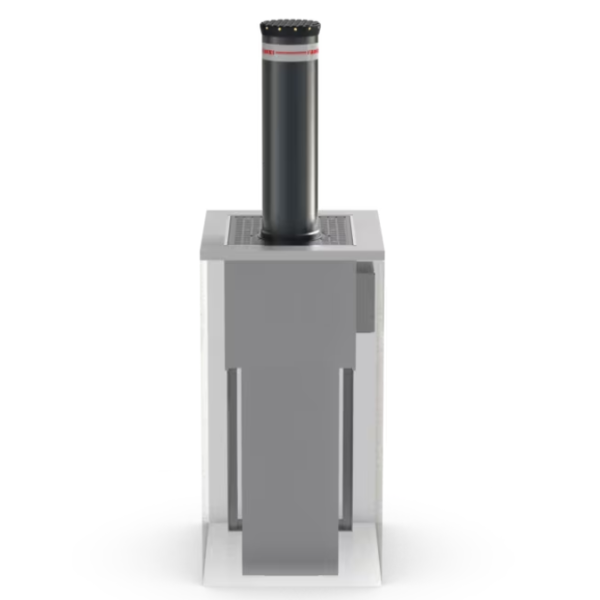

AES Fadini Talos M30 Automatic Bollard - 9682L

Crash-rated to ASTM M30/P1, this automatic bollard is engineered for high-threat vehicle mitigation using a hydraulic system and reinforced anchoring. It offers robust site protection without sacrificing daily operational efficiency.
Part Number: 9682L
$7,575.12 each
$7,575.12 each
OR


Details

AES Fadini Talos M30 Automatic Bollard - 9682L

The AES Talos M30 Automatic Bollard is certified to meet ASTM M30/P1 standards, capable of stopping a 7.5-ton truck traveling at 48 km/h (30 mph) within just 1 meter of penetration. Designed for high-risk zones such as government facilities, airports, and sensitive infrastructure, it features an integrated oil-hydraulic system with prewired cabling and magnetic limit switches. The post rises 1,000mm and is constructed from 16mm thick S355 steel. It includes a reflective band and LED lighting compatibility, with options for heating elements and emergency drop functions via solenoid valve. Unlike other Bollard Manufacturers that require customers to purchase additional equipment to make their Bollards function in the US, AES are among the first manufacturers to make their Bollards fully compatible with US/American Voltages!

Specifications

  • Crash rating: ASTM M30 / K4 / PAS68 equivalent
  • Post height: 1,000mm above ground
  • Post diameter: 275mm
  • Post thickness: 16mm
  • Material: S355 steel, powder coated or AISI 304/316 stainless steel cladding (optional)
  • Cycle time: 7'8 seconds
  • Weight: 510 kg

Features

  • Crash-certified for vehicular terrorism prevention
  • Oil-hydraulic lifting with magnetic position sensing
  • LED perimeter lighting and reflective band enhance visibility
  • Preassembled casing and 10-meter prewired control cabling
  • Compatible with Elpro S40, heaters, solenoids, and more
Prefer to Call? (888) 378-1043

Questions about part number 9682L?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 9682L
Finish Powder-Coated
Material Steel
Input Voltage 208 AC (60 Hz, 1 Phase), 220/230/240 AC (60 Hz, 1 Phase), 230 AC (50 Hz, 1 Phase)
Usage Exterior
Height 800mm
Product Type Bollard
Manufacturer AES Global, LLC
Specification Sheet Download PDF file
Installation Guide Download PDF file
