Reno A&E AVI Receiver 12 - 24 VDC

Details

Reno A&E AVI Receiver 12 - 24 VDC

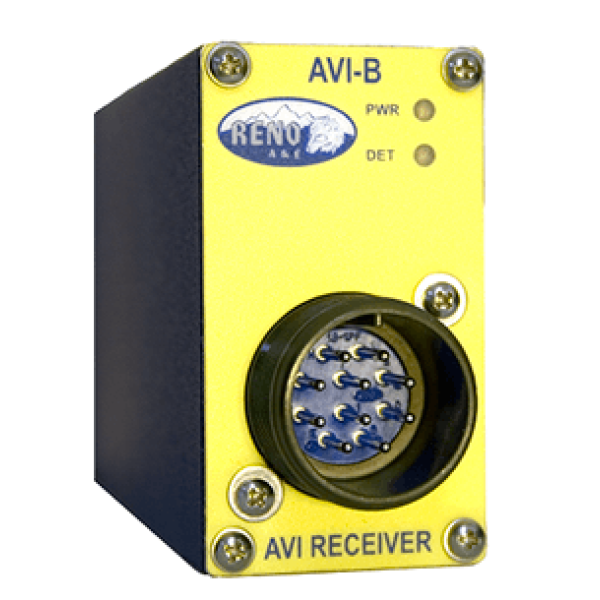

The Reno A&E AVI-B-30 is a 10 pin, 12/24 VDC receiver identifies vehicles equipped with a uniquely coded AVI-FCT or AVI-ATS transmitter. The receiver uses a loop coil installed in the driveway or roadway surface to receive the transmitters code. The receiver is factory programmed to identify one specific transmitter code and does not require any adjustments or setup. The receivers are operational immediately upon application of power.

Separate LEDs on the front panel indicate the presence of power and the presence of a valid-coded transmitter. The Reno A&E AVI-B has a single relay indicating the presence of a transmitter code. Unit only.
