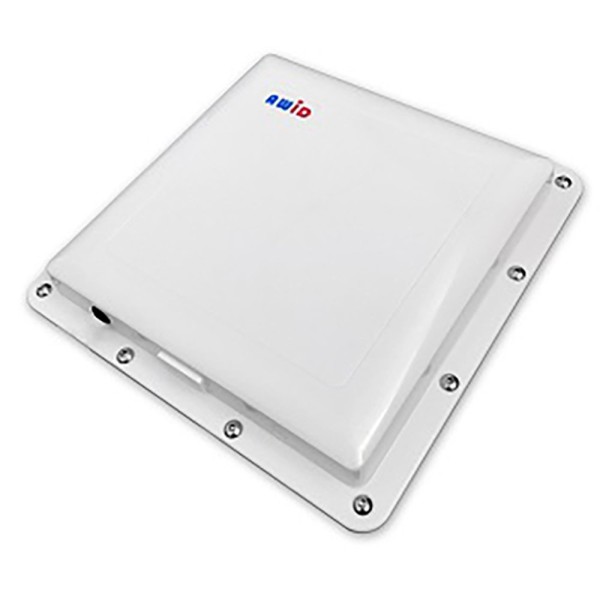

AWID Long Range Passive Automobile Tag-Reader for Doors & Gates (25' Read Range) - 40-LR3000

AWID Long Range Passive Automobile Tag-Reader for Doors & Gates (25' Read Range) - 40-LR3000

This long-range tag-reader provides secure access for automobiles with a range of up to 205 feet. Its robust design ensures reliable operation in various conditions.
Part Number: 40-LR3000
$1,989.13 each $1,989.13 each
OR


Details

AWID Long Range Passive Automobile Tag-Reader for Doors & Gates (25' Read Range) - 40-LR3000

Upgrade your access control system with the 40-LR3000 Long Range Passive Automobile Tag-Reader. This reader provides secure and efficient long-range identification for automobiles, ensuring reliable access control with a range of up to 20 feet.

Specifications:

  • Reading Distance: Tags and cards, up to 25 feet (7.6 meters)
  • Frequency Band: 902 to 928 MHz; Frequency Hopping technology
  • Antenna Output: Circular-polarized RF field
  • Indicators: 2 LEDs - Red for power; Green for tag reading
  • Communications Protocols: Wiegand and RS-232, simultaneous outputs
  • Code Formats: Determined by AWID's tags & cards; 26 to 50 bits
  • Field-Programmable Features: Read repeat rate; RF power level
  • Dimensions: 9.8 x 9.8 x 1.3 inches (25 x 25 x 3.3 cm)
  • Material (Color): ABS enclosure (white); aluminum back-plate
  • Cable (Integrated with Reader): 10 conductors, 32 inches (81 cm) long; overall shielded, plastic jacket
  • Mounting (Supplied by Installer): Pan-and-tilt adjustable aiming, min. 6 inches long
  • Operating Temperature: -35° C to +65° C (-31° F to +150° F)
  • Operating Humidity: 0% to 95% non-condensing
  • Protection Class: IP65 Weatherproof
  • Avoiding Interference: Optimize reader performance by avoiding sources of RF - fluorescent and other arc lighting, UHF transmitters, other UHF readers
  • Certification: FCC Part 15; IC; RoHS; ETL
Prefer to Call? (888) 378-1043

Questions about part number 40-LR3000?

Required Fields *

Name *

Email *

Phone

My Questions *

SKU 40-LR3000
Product Proximity Reader
Frequency 902-928 MHz
Mount Type Tooltip
Want to know the right installation for your setup? Check out our helpful guide here! Learn More
Surface Mount
Range 25'
Input Voltage Tooltip
Need to know the difference between voltages? Check out our guide! Learn More
12 DC
Includes Installation Kit Yes
Hardware Included Yes
Manufacturer AWID
