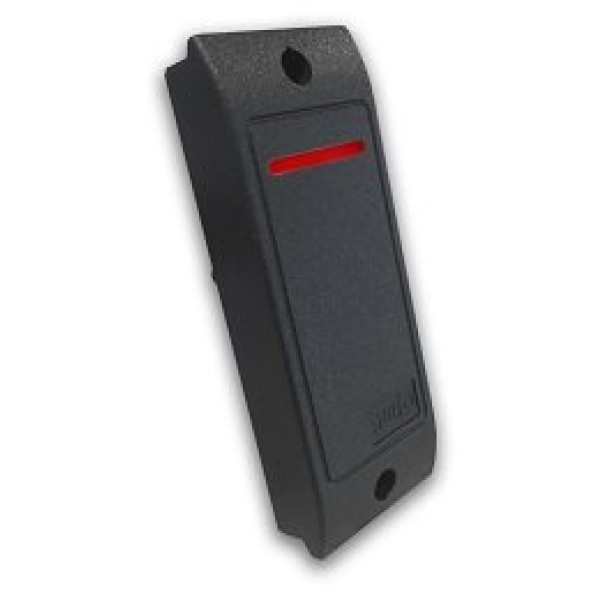

AWID XR-100 OSDP Mullion Mount UHF Reader (12" Range) - XR-100-0-0

The AWID XR-100 UHF Reader allows short-range access control for both vehicles and pedestrians using a single UHF credential. Its compact switchplate form fits neatly on a standard wall box or mullion, making it a clean option for access points with limited space. The reader supports Wiegand, OSDP, and RS-232 communication formats, providing flexibility when connecting to existing control systems. A built-in LED and audible indicator confirm each credential read, while the sealed ABS housing protects the electronics from moisture and dust. Designed for everyday access points, the XR-100 maintains reliable performance in parking garages, gate enclosures, and indoor doorways alike.

Features

• UHF switch-plate reader designed to use the same credentials for both vehicles and people, supporting seamless access with a single card.
• Selects between Wiegand or OSDP communications protocols, enabling backwards compatibility and migration to the high-security OSDP standard.
• Compact enclosure mounts on a standard single-gang electrical box, wall, or mullion and uses only two screws for installation.
• Reads credentials up to approximately 1 foot away on walls or metal surfaces and provides audible and visual feedback with LED and beeper.
• Support for 26-bit to 50-bit code formats and selectable output interfaces makes integration with existing systems straightforward.
• Enclosure is ABS sealed and rated for outdoor use, making it suitable for both indoor and exterior applications.

Specifications

• Reading Distance: Up to 1 foot on wall or metal surface.
• Frequency Band: 902-928 MHz with frequency-hopping technology.
• Power Supply: +5 to +12 VDC regulated; requires at least 1.0 ampere capacity for proper operation.
• Communications Protocols: Wiegand or OSDP (AES-128 encryption supported) or RS-232.
• Code Formats: 26-bit to 50-bit credential formats supported.
• Cable (Wiegand Interface): 22-gauge stranded 4 conductors, overall shielded, up to 500 ft length allowed.
• Dimensions: 1.9 in (W) x 4.8 in (H) x 0.7 in (D).
• Weight: Approximately 4 oz (113 grams).
• Material and Color: ABS one-part sealed enclosure, black.
• Cable (Integrated with Reader): 10-conductor, 18-inch length, overall shielded with gray jacket.
• Mounting Options: Wall, mullion or other surface using supplied screws; metal surfaces may reduce read range by about 20 percent.
• Operating Temperature (50 % duty cycle): -31 Degrees F to +150 Degrees F (-35 Degrees C to +65 Degrees C).
• Operating Temperature (100 % duty cycle): -31 Degrees F to +115 Degrees F (-35 Degrees C to +45 Degrees C).
• Operating Humidity: 0 % to 95 % non-condensing.
• Certifications: ISO 9001:2000, FCC Part 15, IC, RoHS compliant.
