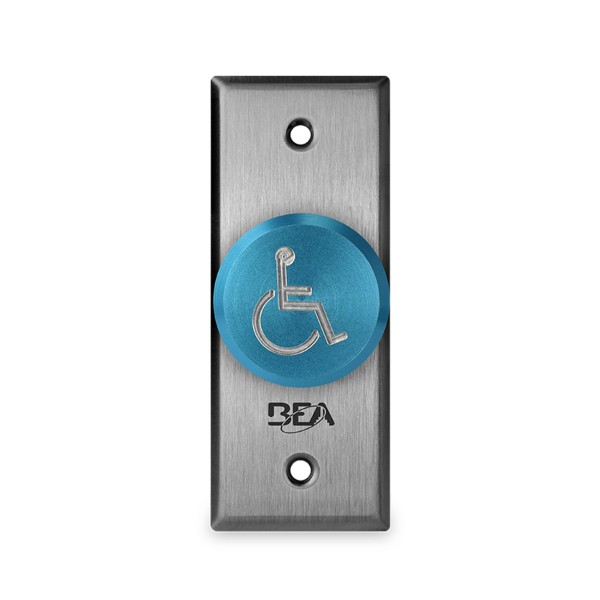

BEA 1-5/8" Jamb Push to Exit Button (Logo Only, Blue, Delayed Action) - 10ACPBDA7

Designed where visual branding is preferred over text on the button face, the BEA 1-5/8" Jamb Push to Exit Button (Logo Only, Blue, Delayed Action) is a great choice for any commercial area. With a pneumatic timing range of 2 to 60 seconds, this button allows for adjustable delayed closures. Made from stainless steel and featuring a narrow-profile design, the BEA 1-5/8" Jamb Push to Exit Button (Logo Only, Blue, Delayed Action) provides durability in any commercial, institutional, or industrial environment where durability and a branded but minimal Push-to-Exit control is desired.

Features:

• 1-5/8 " blue push button with logo-only design for recognizable exit identification
• Incorporates pneumatic delayed action technology adjustable from 2 to 60 seconds
• Jamb-style stainless steel faceplate fits narrow posts and doorways
• Fully self-contained pneumatic timer requires no electrical wiring

Specifications:

• Activation Type: Pneumatic delayed action with adjustable timer
• Button Diameter: 1-5/8"
• Faceplate Size: 1.75" x 4.5" (jamb type)
• Switch Rating: 5 A @ 125 VAC or 2.5 A @ 12-24 V AC/DC
• Time Delay Range: Adjustable 2 to 60 seconds ~15%
• Mechanical Life Expectancy: Exceeds 1,000,000 cycles
