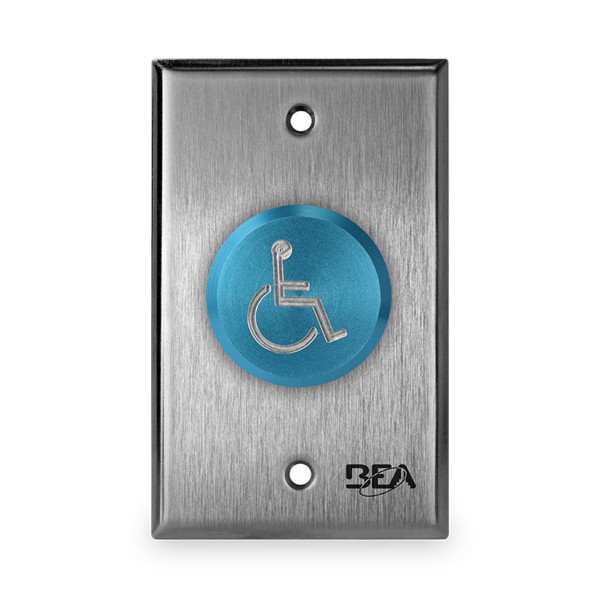

BEA 1-5/8" Single-Gang Push to Exit Button (Logo Only, Blue, Delayed Action) - 10ACPBDA8

Designed where visual branding is preferred over text on the button face, the BEA 1-5/8" Single-Gang Push to Exit Button (Logo Only, Blue, Delayed Action) is a great choice for any commercial area. With a pneumatic timing range of 2 to 60 seconds, this button allows for adjustable delayed closures. Made from stainless steel and featuring a smaller button, the BEA 1-5/8" Single-Gang Push to Exit Button (Logo Only, Blue, Delayed Action) provides durability in any commercial, institutional, or industrial environment where durability and a branded but constrained wall or frame space are required.

Features:

• 1-5/8 " blue push button with logo-only design for intuitive exit identification
• Pneumatic delayed action mechanism provides adjustable delay timing between 2 and 60 seconds
• Requires no external power source - operates entirely through pneumatic pressure
• Ideal for automatic door systems requiring time delay activation in commercial or institutional settings

Specifications:

• Activation Method: Pneumatic delayed action with adjustable timer
• Button Diameter: 1-5/8"
• Faceplate Size: 2.75" x 4.5" (single-gang type)
• Switch Rating: 5 A @ 125 VAC or 2.5 A @ 12-24 V AC/DC
• Delay Adjustment Range: 2 to 60 seconds ~15%
• Mechanical Life: Exceeds 1,000,000 operations
