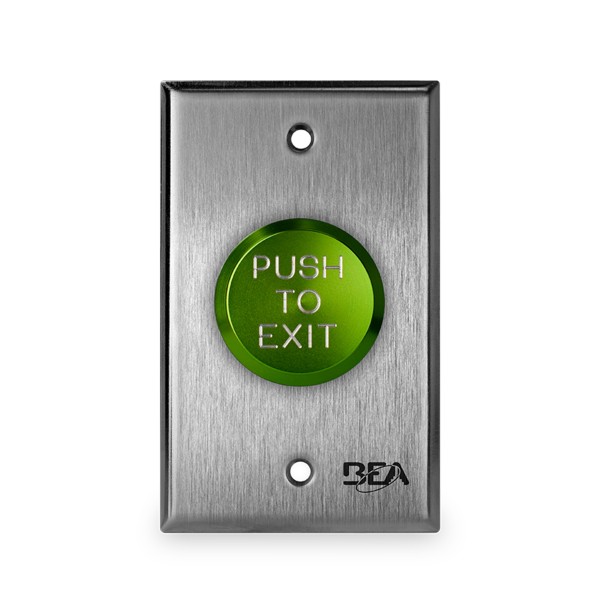

BEA 1-5/8" Delayed Action Single-Gang "Push to Exit" Button (Text Only, Green) - 10ACPBDA12

Key Features:

• 1-5/8" green push button with "Push to Exit" text for clear user guidance
• Adjustable pneumatic delayed action with timing range from 2 to 60 seconds
• Single-gang stainless steel faceplate fits standard electrical boxes for easy installation
• Self-contained pneumatic mechanism eliminates the need for external power
• Built with stainless steel components for long-term reliability and resistance to wear

Specifications:

• Activation Method: Pneumatic delayed action
• Button Diameter: 1-5/8"
• Faceplate Type: Single-gang, approximately 2.75" x 4.5"
• Switch Rating: 5 A @ 125 VAC or 2.5 A @ 12-24 V AC/DC
• Time Delay Range: Adjustable from 2 to 60 seconds ~15%
• Temperature Range: -15 F to 120 F
• Cycle Life: Rated for over 1,000,000 operations
