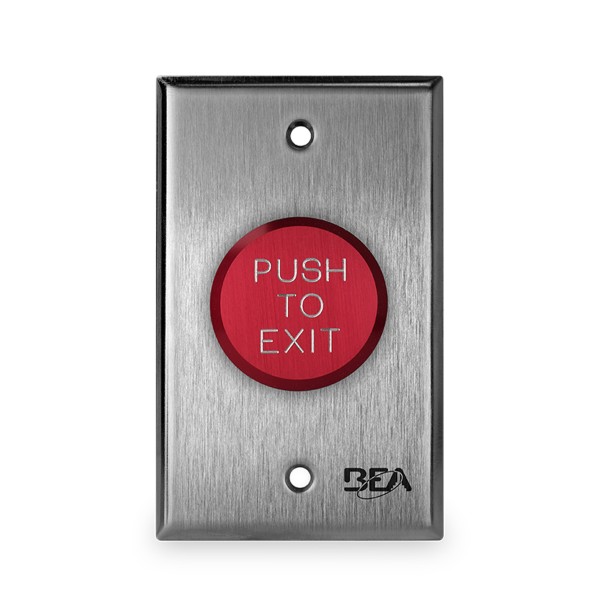

BEA 1-5/8" Delayed Action Single-Gang "Push to Exit" Button (Text Only, Red) - 10ACPBDA4

With a vivid red color for added visibility, the BEA 1-5/8" Delayed Action Single-Gang "Push to Exit" Button (Text Only, Red) features a red button with  “Push to Exit” text. With a pneumatic timing range of 2 to 60 seconds, this button allows for adjustable delayed closures. Designed with a durable steel faceplate, the BEA 1-5/8" Delayed Action Single-Gang "Push to Exit" Button (Text Only, Red) is perfect for managing exit flows in an access-controlled environment.

Features:

• 1-5/8" red push button clearly labeled ""Push to Exit"" for quick and visible activation
• Adjustable pneumatic delayed action allows customizable timing between 2 and 60 seconds
• Single-gang stainless steel faceplate fits standard electrical boxes for secure mounting
• Self-powered pneumatic operation - no electrical wiring required

Specifications:

• Activation Method: Pneumatic delayed action
• Button Diameter: 1-5/8"
• Faceplate Type: Single-gang, approximately 2.75" x 4.5"
• Switch Rating: 5 A @ 125 VAC or 2.5 A @ 12-24 V AC/DC
• Time Delay Range: Adjustable from 2 to 60 seconds ~15%
• Cycle Life: Over 1,000,000 activations
