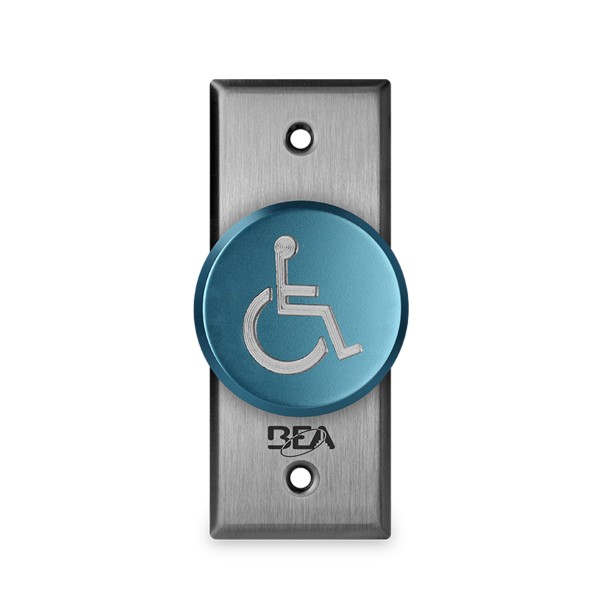

BEA 2" Jamb Push to Exit Button (Logo Only, Blue, Delayed Action) - 10ACPBDA5

Designed where visual branding is preferred over text on the button face, the BEA 2" Jamb Push to Exit Button (Logo Only, Blue, Delayed Action) is a great choice for any commercial area. With a pneumatic timing range of 2 to 60 seconds, this button allows for adjustable delayed closures. Made from stainless steel and featuring a narrow-profile design, the BEA 2" Jamb Push to Exit Button (Logo Only, Blue, Delayed Action) provides durability in any commercial, institutional, or industrial environment where durability and a minimalistic branded look are desired.

Features:

• 2" blue push button featuring the exit logo only, ideal for ADA-compliant door systems
• Pneumatic delayed action mechanism provides adjustable delay timing from 2 to 60 seconds
• Compact jamb-style stainless steel faceplate for narrow posts and doorways
• Self-contained pneumatic operation - requires no power supply or external wiring

Specifications:

• Activation Type: Pneumatic delayed action with adjustable timer
• Button Diameter: 2"
• Faceplate Size: 1.75" x 4.5" (jamb type)
• Switch Rating: 5 A @ 125 VAC or 2.5 A @ 12-24 V AC/DC
• Delay Range: 2 to 60 seconds ~15% adjustable
• Mechanical Life: Over 1,000,000 activations
