Details

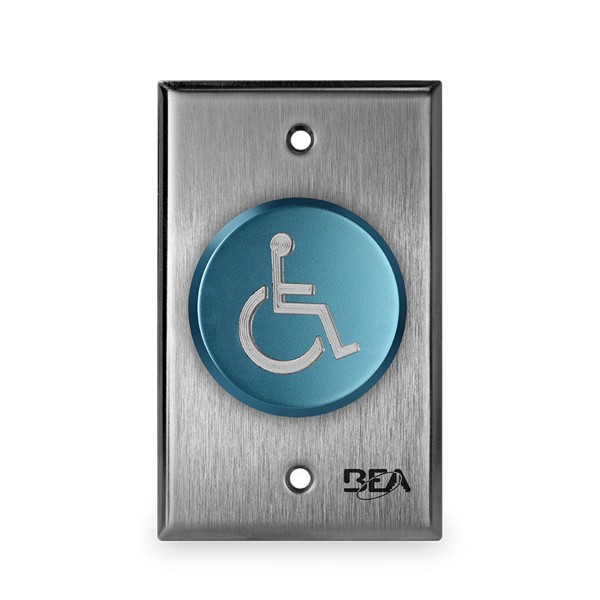

BEA 2" Single-Gang Push to Exit Button (Logo Only, Blue, Delayed Action) - 10ACPBDA6

Designed where visual branding is preferred over text on the button face, the BEA 2" Single-Gang Push to Exit Button (Logo Only, Blue, Delayed Action) is a great choice for any commercial area. With a pneumatic timing range of 2 to 60 seconds, this button allows for adjustable delayed closures. Made from stainless steel and featuring a 2" button diameter with the universal exit logo, the BEA 2" Single-Gang Push to Exit Button (Logo Only, Blue, Delayed Action) provides durability in any commercial, institutional, or industrial environment where durability and simplicity are key.

Features:

• 2" blue push button featuring a universal exit logo for clear visual identification
• Pneumatic delayed action timer provides adjustable delay from 2 to 60 seconds
• Self-contained pneumatic timer requires no electrical wiring or power connection
• Made of corrosion-resistant stainless steel for high-traffic commercial use

Specifications:

• Mechanical Endurance: Rated for over 1,000,000 operations
• Activation Method: Pneumatic delayed action with adjustable timer
• Button Diameter: 2"
• Faceplate Dimensions: 2.75" x 4.5" (single-gang type)
• Switch Rating: 5 A @ 125 VAC or 2.5 A @ 12-24 V AC/DC
• Delay Range: Adjustable between 2 and 60 seconds ~15%
