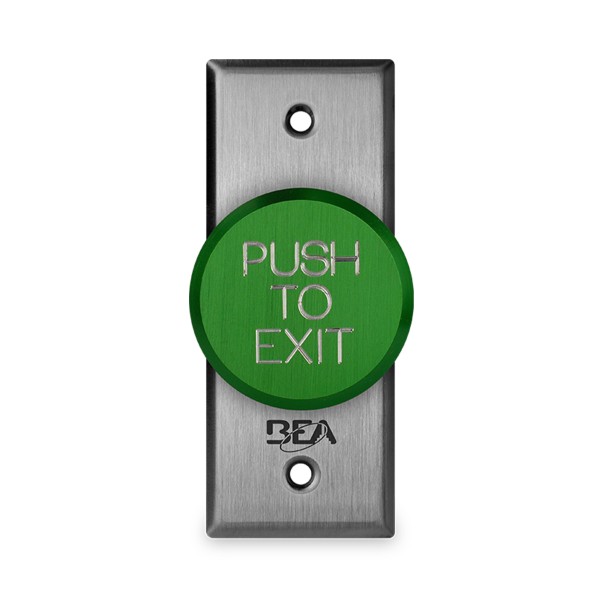

BEA 2" Delayed Action Jamb "Push to Exit" Button (Text Only, Green) - 10ACPBDA9

Featuring a narrow-profile design and vivid green text for maximum visibility, the BEA 2" Delayed Action Jamb "Push to Exit" Button (Text Only, Green) is a great choice for any commercial area. With a pneumatic timing function, this button allows for adjustable delayed closures.  The faceplate fits narrow frame openings measuring approximately 1.75" x 4.5" in height, allowing you to place buttons in smaller areas. Made from stainless steel and featuring a 2" button diameter, the BEA 2" Delayed Action Jamb "Push to Exit" Button (Text Only, Green) offers durability in any office, hospital, or commercial facility that requires supervised exit control.

Features:

• 2" green push button with "Push to Exit" text for clear and immediate identification
• Pneumatic delayed action design allows adjustable time delay from 2 to 60 seconds
• Jamb-style stainless steel faceplate fits narrow posts and door frames
• Self-contained pneumatic timer requires no electrical connection or external power source

Specifications:

• Activation Type: Pneumatic delayed action with adjustable timer
• Button Diameter: 2"
• Faceplate Size: 1.75" x 4.5" (jamb type)
• Switch Rating: 5 A @ 125 VAC or 2.5 A @ 12-24 V AC/DC
• Delay Adjustment: 2 to 60 seconds ~15%
• Mechanical Endurance: Over 1,000,000 cycles
