Details

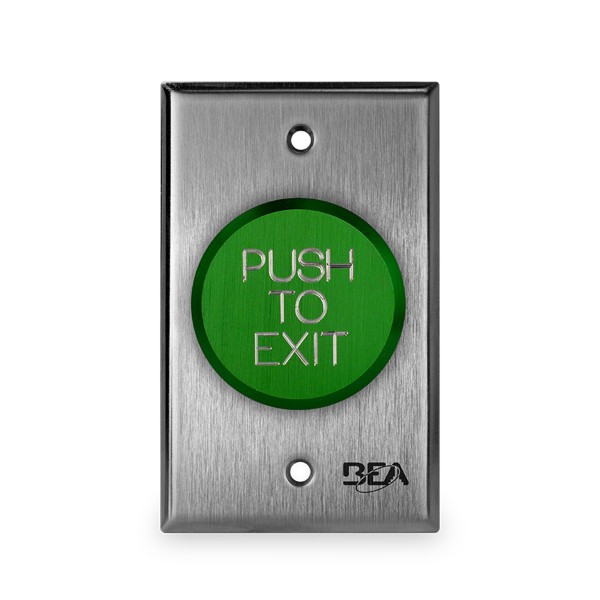

BEA 2" Delayed Action Single-Gang "Push to Exit" Button (Text Only, Green) - 10ACPBDA10

With vibrant green text, the BEA 2" Delayed Action Single-Gang "Push to Exit" Button (Text Only, Green) offers clear guidance and visibility. This button can be added to any system and ensures precise activation without requiring external power. With pneumatic timing, this button allows for adjustable closures to fit a variety of needs. Built with a durable 2” stainless steel faceplate, the BEA 2" Delayed Action Single-Gang "Push to Exit" Button (Text Only, Green) is ideal for any location that needs a visible exit interface.

Features:

• 2" diameter green push button labeled "Push to Exit" for clear visibility and ease of use
• Pneumatic delayed action allows for adjustable time delay between 2 and 60 seconds
• Single-gang faceplate design fits standard electrical boxes for quick mounting
• Self-contained pneumatic timer requires no external power source for use

Specifications:

• Mechanical Life: Tested for over 1,000,000 operations
• Activation Type: Pneumatic with adjustable delay
• Button Size: 2" diameter
• Faceplate Dimensions: Standard single-gang, approximately 2.75" x 4.5"
• Switch Rating: 5 A @ 125 VAC or 2.5 A @ 12-24 V AC/DC
• Delay Range: Adjustable from 2 to 60 seconds ~15%
