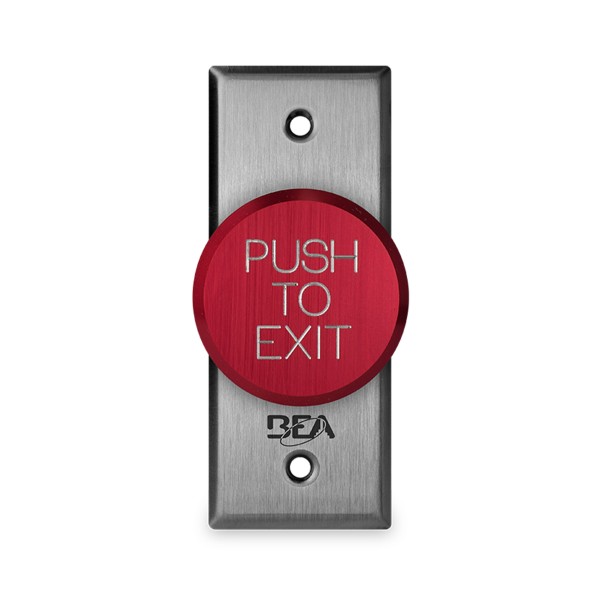

BEA 2" Delayed Action Jamb "Push to Exit" Button (Text Only, Red) - 10ACPBDA1

Featuring a narrow-profile design and vibrant red text for maximum visibility, the BEA 2" Delayed Action Jamb "Push to Exit" Button (Text Only, Red) is a great choice for any commercial area. With a pneumatic timing function, this button allows for adjustable delayed closures. The faceplate fits narrow frame openings measuring approximately 1.75" x 4.5" in height, allowing you to place buttons in smaller areas. Made from stainless steel and featuring a 2" button diameter, the BEA 2" Delayed Action Jamb "Push to Exit" Button (Text Only, Red) provides durability in any office, hospital, or commercial facility requiring timed release operation.

Features:

• Pneumatic activation with adjustable hold-time delay from 2 to 60 seconds
• Oversized 2" red push button clearly marked ""Push to Exit"" for easy recognition
• Jamb-style faceplate designed for narrow posts on door frames
• No external power required for timing sequence-mechanical pneumatic delay is self-contained

Specifications:

• Tested for over 1,000,000 operations
• Technology: Pneumatic
• Faceplate Dimensions (Jamb style): approximately 1.75" width x 4.5" height
• Switch Rating: 5 A @ 125 VAC (select models also list 2.5 A @ 12-24 V AC/DC)
• Adjustable Time Range: 2 to 60 seconds ~15%
• Repeat Accuracy: ~5% at 72 F
