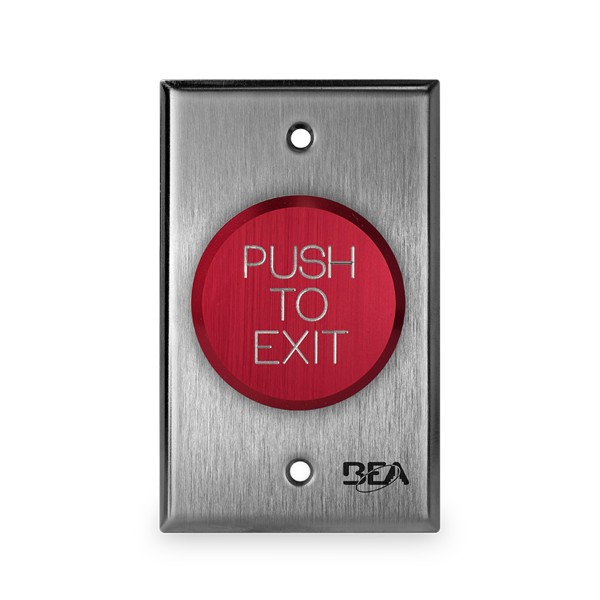

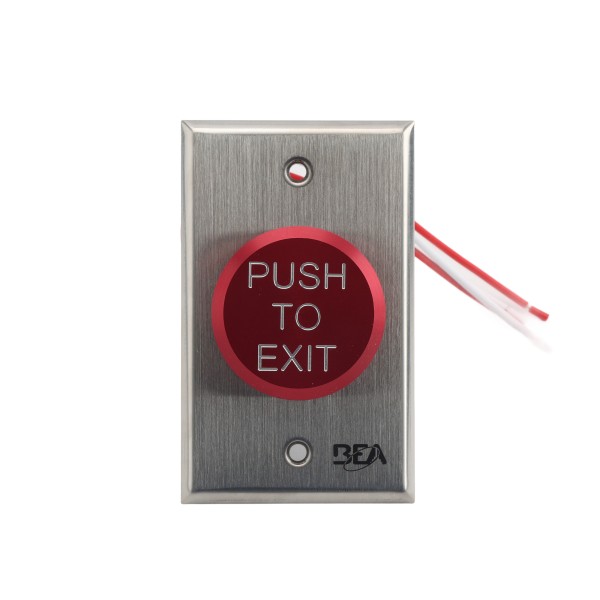

BEA 2" Delayed Action Jamb "Push to Exit" Button (Text Only, Red) - 10ACPBDA2

Featuring a vibrant red text for maximum visibility, the BEA 2" Delayed Action Jamb "Push to Exit" Button (Text Only, Red) is a great choice for any commercial area. With a pneumatic timing function, this button allows for adjustable delayed closures. Made from stainless steel and featuring a 2" button diameter, the BEA 2" Delayed Action Jamb "Push to Exit" Button (Text Only, Red) provides durability in any commercial, institutional, or industrial environment.

Features:

• 2" red push button with ""Push to Exit"" text for immediate and visible user indication
• Pneumatic delayed action allows adjustable timing between 2 and 60 seconds
• Compact jamb-style faceplate designed for narrow frame installations
• Completely self-powered pneumatic timer - no electrical connection required

Specifications:

• Activation Type: Pneumatic with adjustable delay function
• Button Diameter: 2"
• Faceplate Dimensions: 1.75" x 4.5" (jamb style)
• Switch Rating: 5 A @ 125 VAC or 2.5 A @ 12-24 V AC/DC
• Delay Range: Adjustable from 2 to 60 seconds ~15%
• Mechanical Life: Over 1,000,000 cycles
