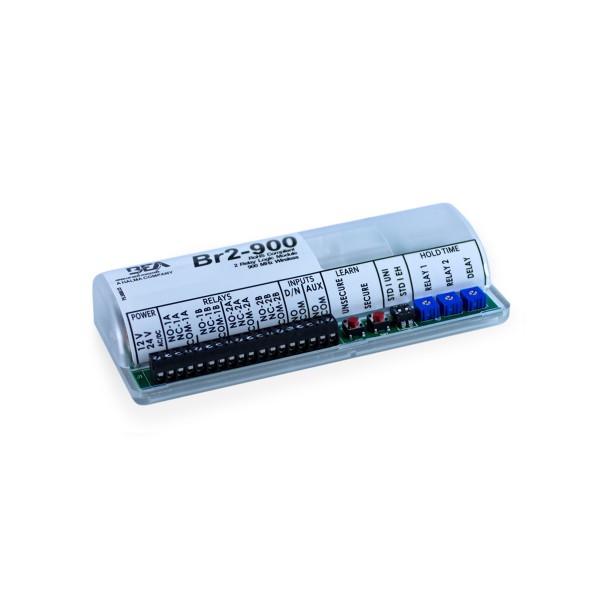

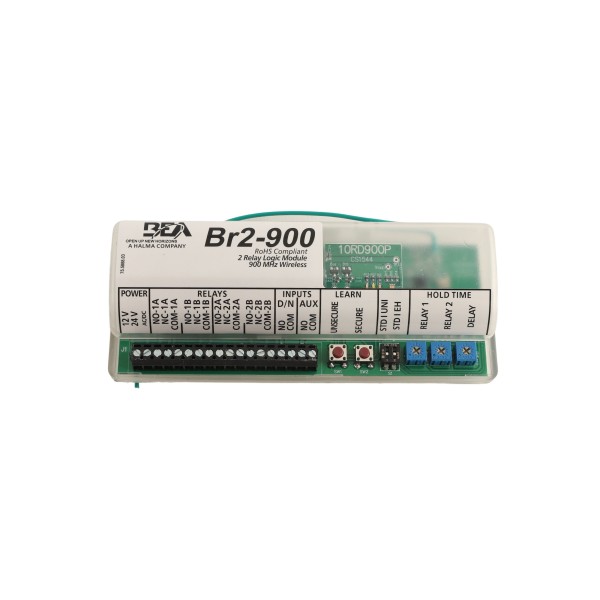

BEA 900MHz Wireless 2-Relay Logic Module - 10BR2-900

Key Features:

• Compact wireless logic module designed to interface with BEA 900MHz transmitters and receivers for signal control
• Operates on the 900MHz frequency band for extended range and reliable communication through building materials
• Provides two independent relay outputs that can be triggered by compatible BEA 900 series transmitters
• LED indicators display active channel status, power, and signal reception for simplified monitoring
• Includes adjustable hold time and latching configuration options to support a variety of automatic door and gate systems

Specifications:

• Frequency: 902 to 928MHz (frequency-hopping spread spectrum)
• Relay Outputs: Two SPDT relays, rated at 1A at 24VDC or 120VAC
• Power Supply: 12 to 24V AC/DC (low voltage operation)
• Communication Range: Up to 500 feet line-of-sight (varies by environment)
• Relay Modes: Momentary, toggle, and latched configuration options
• Indicators: Power LED, signal reception LED, and output activation LED
• Enclosure: Compact surface-mount housing with integrated antenna connection
• Operating Temperature Range: -4 F to +140 F (-20 C to +60 C)
• Compatibility: Works with BEA 900MHz series transmitters and sensors
