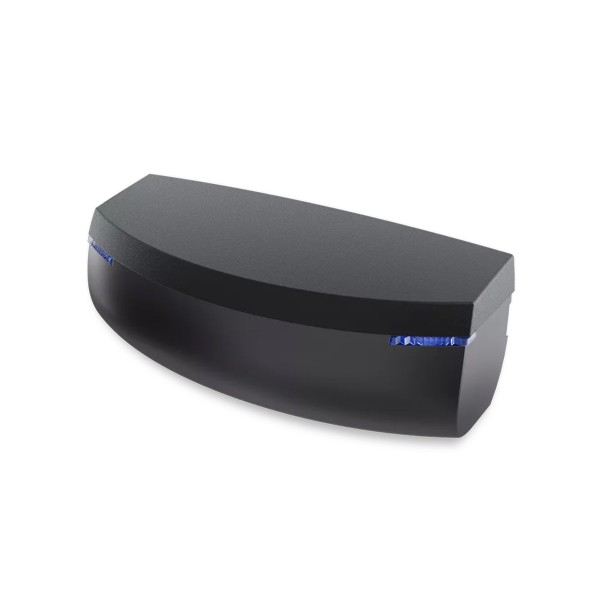

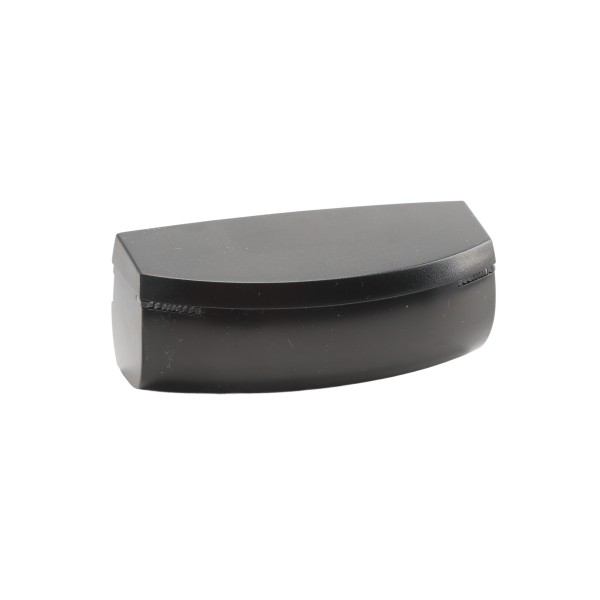

BEA Eagle Artek Microwave Motion Sensor - 10EAGLEARTEK

Key Features:

• Slim and compact design permits discreet integration with all types of automatic door operators
• Electronic management of radar field shape via push-button adjustments (no manual antenna change needed)
• Settings for immunity filter, field size, and field shape work together with direction sensing to reduce false activations
• Designed for easy retrofit using same mounting references and plug-in interface
• Optimized cross-traffic rejection filters out parallel movements to avoid false triggering

Specifications:

• Technology: Microwave
• Detection Mode: Motion
• Transmitter Frequency: 24.15 GHz
• Transmitter Radiated Power: Approx. 20 dBm EIRP
• Transmitter Power Density: Approx. 5 mW/cm sq.
• Max Detection Range: Wide: 13 ft x 6.5 ft; Narrow: 6.5 ft x 7 ft @ 7 ft high
• Minimum Detection Speed: 2 in/s
• Supply Voltage: 12 - 24 VAC ~10% (50 - 60 Hz); 12 - 24 VDC +30% / -10%
• Max Power Consumption: Approx. 1 W
• Output: Solid-state relay (polarity free)
• Max Switching Voltage: 30 VAC / 42 VDC
• Max Switching Current: 100 mA (resistive)
• Mounting Height: 6 ft - 13 ft
• Tilt Angles Vertical: 0 to 90
• Tilt Angles Lateral: -30 to +30
• Temperature Range: -4 F to 131 F (-20 to 55 C)
• Dimensions: 4.72" (L) x 1.96" (H) x 1.96" (W)
• Material: ABS
• Weight: 120 g
• Cable Length: 8 ft
• Degree of Protection: IP54
