BEA Falcon EX Motion Sensor with 100ft Harness for Standard Mount - 10FALCONEX100

Perfect for use in chemical manufacturing, petroleum refining, and agricultural settings, the MMTC Explosion Proof Motion Detector is a heavy-duty, explosion-proof, and flame-proof system. With 6 different setting modes for pedestrian and parallel traffic rejection, this motion detector has a range of detection. Featuring a high mounting range of 11 1/2 ft to 23 ft, the MMTC Explosion Proof Motion Detector provides a wide view of any area.

Features:

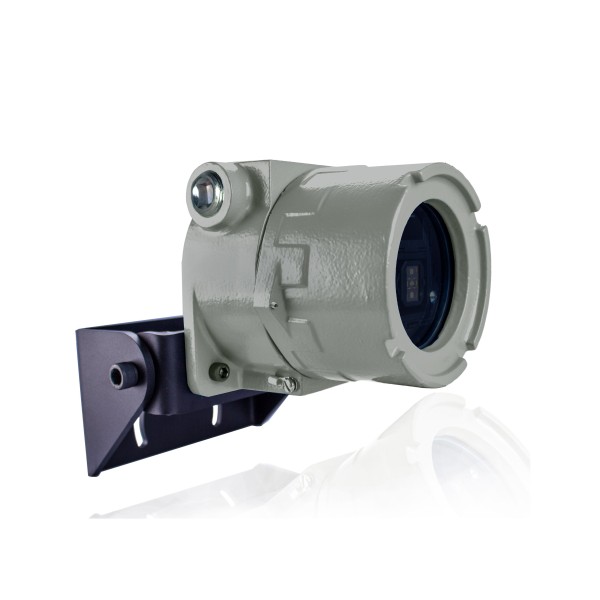

• Microwave motion sensor in explosion-proof / flame-proof housing
• Remote control programming for safe configuration from ground level
• Capable of mounting at high elevations
• Bidirectional, unidirectional approach and unidirectional depart detection options

Specifications:

• Technology: Microwave Doppler Radar
• Detection Zones (typical): Falcon EX: 13 ft x 16 ft @ 16 ft mounting height
• Dimensions (housing & bracket): 5.5" (L) x 7.5" (W) x 9" (H)
• Max Power Consumption: Approx. 2 W
• Mounting Height Ranges: 11 1/2 ft - 23 ft
• Electrical Access: 3/4" NPT pipe thread/li>
