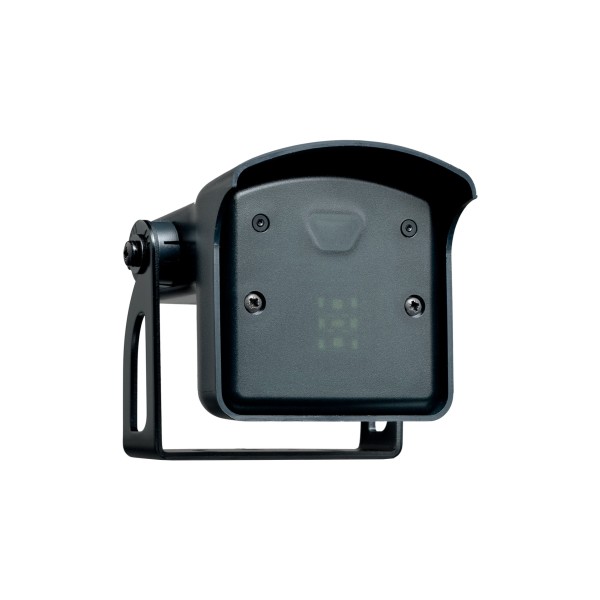

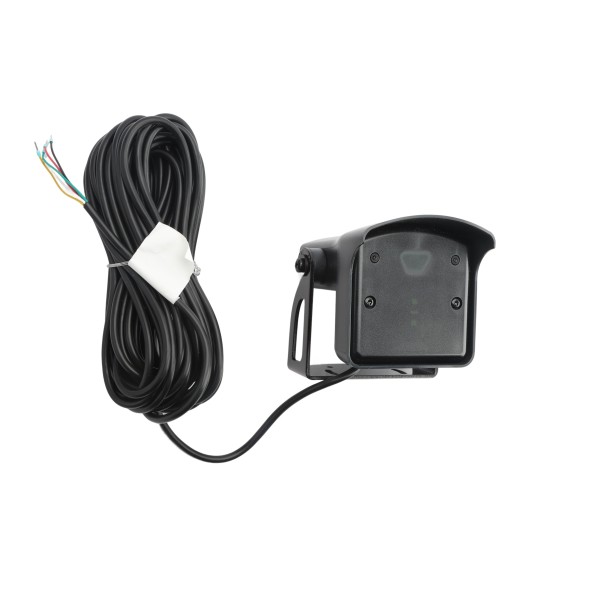

BEA Falcon Wide-Range Industrial Motion Sensor - 10FALCONW

Key Features:

• Uni- and bi-directional microwave motion detection
• Multiple models (Falcon, Falcon XL, Falcon Wide) to suit mounting height and width requirements
• Pedestrian and parallel traffic rejection to avoid unwanted activations
• Adjustable tilt angle from 0 Degrees to 180 Degrees
• Remote control programming for configuration from ground level
• Six modes of detection filtering for better interference immunity
• Durable enclosure rated for harsh environments (IP65 / NEMA 4)

Specifications:

• Technology: Microwave Doppler radar
• Radiated Frequency: 24.150 GHz
• Radiated Power: Approx. 20 dBm EIRP
• Power Density: Approx. 5 mW / cm sq.
• Detection Mode: Motion
• Detection Zones (typical): 13 ft x 16 ft at 16 ft mounting height
• Tilt Angles: 0 Degrees to 180 Degrees
• Output: Relay (free of potential change-over contact)
• Maximum Contact Voltage: 42 VAC / VDC
• Maximum Contact Current: 1 A (resistive)
• Maximum Switching Power: 30 W (DC); 60 VA (AC)
• Hold Time: 0.5 s to 9 s (adjustable)
• Reaction Time: 100 ms
• Minimum Detection Speed: 2.2 in / s
• Mains Frequency: 50 - 60 Hz
• Supply Voltage: 12 - 24 VAC ~10%; 12 - 24 VDC +30% / -10%
• Power Consumption: Approx. 2 W
• Mounting Height Ranges: 111/2 ft to 23 ft
• Dimensions: 3 3/4" (W) x 4" (H) x 5" (L)
• Materials: ABS & Polycarbonate
• Temperature Range: -22 F to 140 F
• Degree of Protection: IP65
• Norm / Compliance: EMC 2004 / 108 / EC; R&TTE 1999 / 5 / EC
