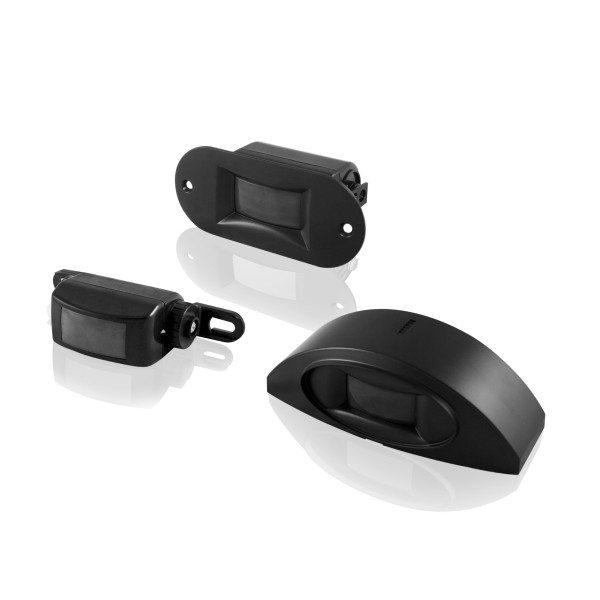

BEA Fly Kit Surface-Mount Passive Infrared Presence Sensor, Extended Relay Time with Surface & Ceiling Adapters (Black) - 10FLYKITBERT

Key Features:

• ERT Version with Extended Relay Hold Times for Longer Door or Gate Egress Needs
• Compact Passive Infrared Request to Exit Sensor with Precise Detection
• Masking Overlays Included for Fine Tuning the Sensing Zone
• DIP Switch Configuration for User Defined Sensitivity, Relay Time, and Output Mode
• Form C Relay Output with Selectable NO or NC Contact
• Low Profile Housing Suitable for Ceiling or Surface Mounting

Specifications:

• Technology: Passive Infrared with Microprocessor Control
• Mounting Height: Recommended 6.5 ft to 8 ft - Maximum 10 ft
• Mounting Angle: 0 Degrees to 180 Degrees
• Power Supply: 12 to 24 VAC Plus or Minus 10 Percent 50 or 60 Hz or 12 to 24 VDC -10 Percent to +30 Percent
• Current Consumption: Less Than 10 mA - Approximately 20 mA When Relay Output is Active
• Outputs: Potential Free Form C Relay Contact - NO or NC Selectable
• Contact Rating: 1 A at 75 VDC or 50 VAC
• Optics: Four Element PIR - 15 Fresnel Lenses with Independent Masking
• Warm Up Time: 10 Seconds
• Response Time: Maximum 200 ms
• Relay Hold Time: 15 or 30 Seconds on ERT Version
• Operating Temperature: -22 F to 140 F - -30 C to +55 C
• Cable: 9 ft 4 Conductor with 5 Pin Connector
• Weight: 1.4 oz - 40 g
• Dimensions: 4 in W x 1.2 in H x 1 in D
• Housing Color: Black
