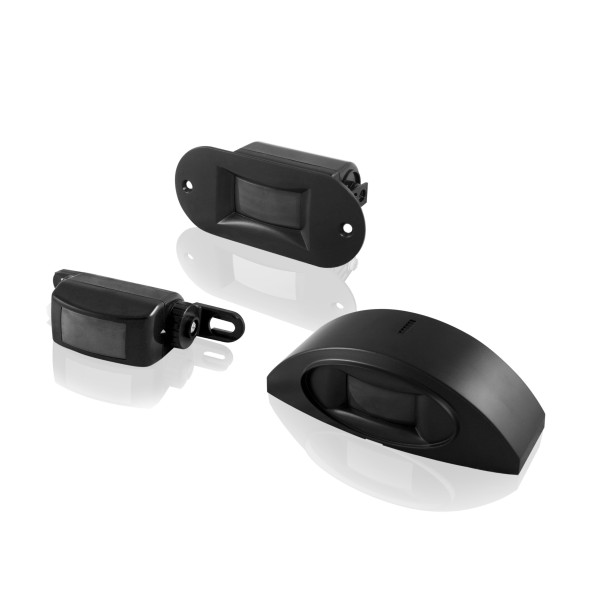

BEA Fly Kit Surface-Mount Passive Infrared Presence Sensor with Surface & Ceiling Adapters (Black) - 10FLYKITB

Key Features:

• Compact passive infrared request to exit sensor with precise detection
• Masking overlays included for fine tuning the sensing zone
• DIP switch configuration for user defined settings
• Low profile housing suitable for ceiling or surface mounting
• Form C relay output with selectable NO or NC contact

Specifications:

• Technology - Passive infrared with microprocessor control
• Mounting height - recommended 6.5 ft to 8 ft - maximum 10 ft
• Mounting angle - 0 Degrees to 180 Degrees
• Power supply - 12 to 24 VAC plus or minus 10 percent 50 or 60 Hz or 12 to 24 VDC minus 10 percent to plus 30 percent
• Current consumption - less than 10 mA - less than 20 mA when relay active
• Outputs - potential free relay contact - NO or NC selectable
• Contact rating - 1 A at 75 VDC or 50 VAC
• Optics - four element PIR - 15 Fresnel lenses with independent masking
• Warm up time - 10 seconds
• Response time - maximum 200 ms
• Relay hold time - 0.5 or 2 seconds standard - 15 or 30 seconds on ERT version
• Operating temperature - minus 22 F to 140 F - minus 30 C to plus 55 C
• Cable - 9 ft 4 conductor with 5 pin connector
• Weight - 1.4 oz - 40 g
• Dimensions - 4 in W x 1.2 in H x 1 in D
• Housing color - black
