Details

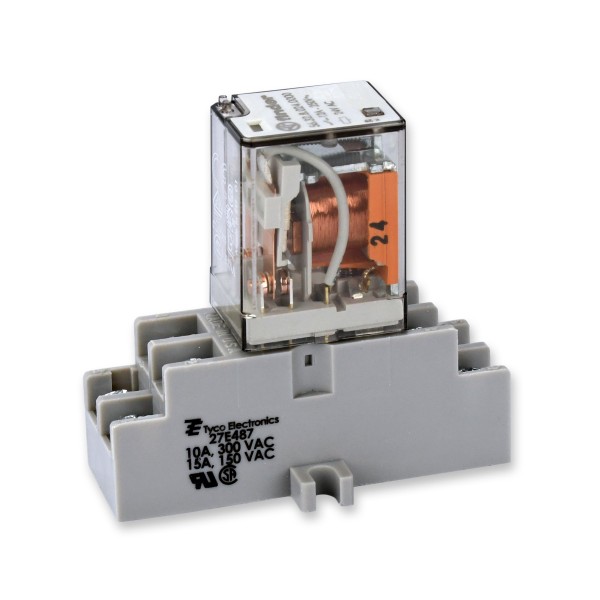

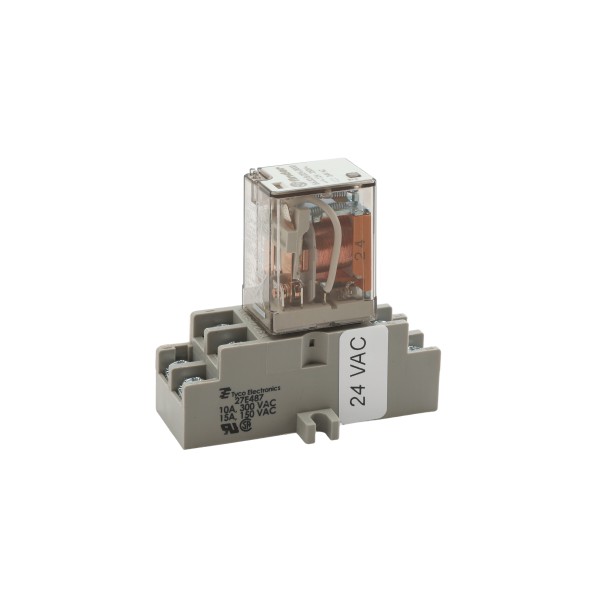

BEA 24VAC DPDT Isolation Relay - 10REL24V

Key Features:

• DPDT isolation relay designed for utility switching in access-control or automatic door systems
• Coil input rated for 24 VAC for flexible use in common control circuits
• Used to isolate and protect low-voltage control devices or increase the contact rating of sensor outputs
• Includes socket mount for quick installation and field replacement
• Compact design suitable for use in control cabinets or behind sensor modules

Specifications:

• Coil Input: 24 VAC ~5 %
• Contact Configuration: DPDT (Double-Pole Double-Throw)
• Contact Rating: 10 A at 24 VDC / 120 VAC
• Dimensions - Relay: 1 3/8 in (L) x 1 in (W) x 7/8 in (H); Socket: 2 5/8 in (L) x 1 3/8 in (W) x 1 in (H)
• Mounting Style: Socket Mount (Relay plugs into socket base)
• Operating Temperature Range: -4 F to +158 F (-20 C to +70 C)
