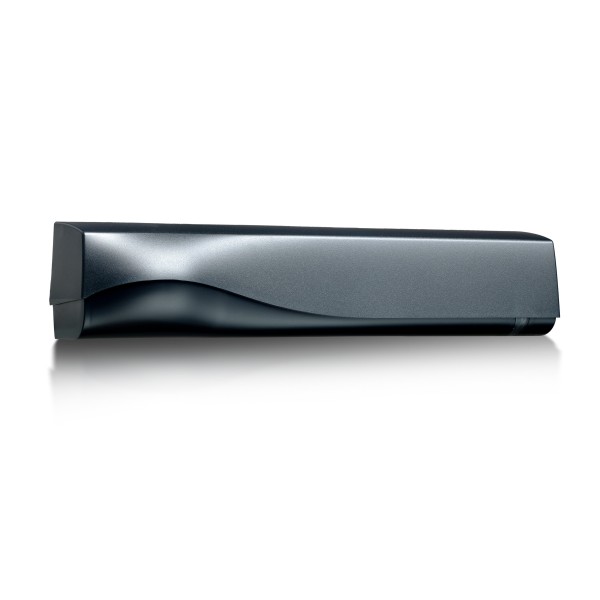

BEA IXIOST Industrial Sliding Door Active Infrared Presence Sensor (24 VAC/DC) - 10IXIOSTINDUS

Key Features:

• Active infrared sensor specifically designed for industrial sliding doors, providing precise presence detection and safety coverage
• Combines activation and presence detection functions in one compact housing to simplify installation and system integration
• Advanced signal processing ensures high immunity to external light, temperature changes, and door reflections
• Adjustable detection field width and depth allow for customized coverage depending on door size and speed
• Fail-safe performance that complies with ANSI 156.10 standards for pedestrian and industrial door safety
• Compatible with 24 VAC or 24 VDC power input, suitable for most commercial and industrial door control systems

Specifications:

• Technology: Active infrared with background analysis
• Detection Range: Adjustable up to 6.5 feet for presence detection
• Mounting Height: 6.5 to 11.5 feet typical for industrial sliding doors
• Power Supply: 24 VAC ~10% or 24 VDC ~30%
• Output: 2 relay contacts (activation and safety), rated 1 A at 30 V (resistive load)
• Response Time: Less than 100 milliseconds
• Operating Temperature: -13 F to 131 F (-25 C to +55 C)
• Enclosure Rating: IP54 rated for dust and moisture resistance
• Field Adjustment: 24 infrared spots, individually configurable for depth and width control
• Dimensions: Approximately 9.1" x 2.0" x 2.4"
• Standards: Complies with EN 16005 and ANSI 156.10 for door safety and accessibility
