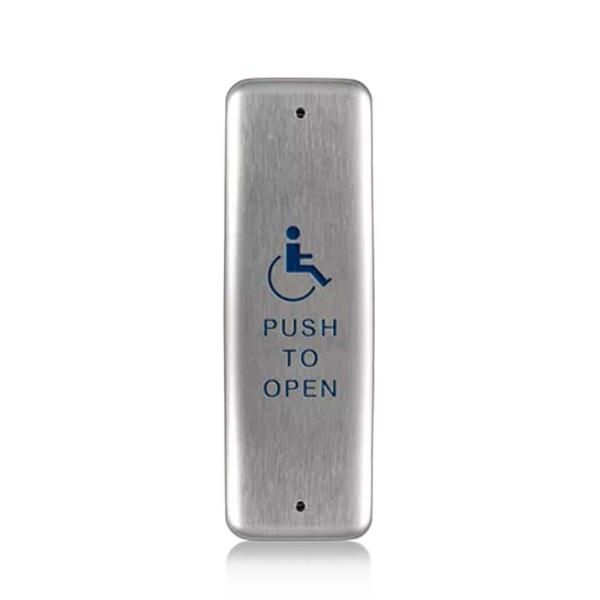

BEA 1.75" x 4.5" Jamb Stainless Steel "Push to Open" Push Plate with Microswitch (Text & Accessibility Logo) - 10PBJMS1

Featuring a slim design, the BEA 1.75" x 4.5" Jamb Stainless Steel "Push to Open" Push Plate with Microswitch (Text & Accessibility Logo) has engraved “Push to Open” text and accessibility logo in blue. This plate is perfect for fitting in areas where standard switches can’t. With a responsive 2-stud microswitch, the BEA 1.75" x 4.5" Jamb Stainless Steel "Push to Open" Push Plate with Microswitch (Text & Accessibility Logo) is ideal for healthcare facilities, schools, and office buildings.

Features:

• Equipped With A Microswitch For Smooth And Consistent Activation
• Features ""Push To Open"" Text And Accessibility Logo For ADA-Compliant Access Control Systems
• Compact 1.75" x 4.5" Jamb Design Perfect For Tight Spaces Such As Door Frames And Rails
• Beveled Edges Provide A Finished Appearance And Help Prevent Tampering Or Damage

Specifications:

• Faceplate Material: 16 Gauge 304 Stainless Steel
• Backplate Material: 1/8"" Thick Aluminum
• Switch Type: Microswitch With COM / NO / NC Contacts
• Electrical Rating: 15 A, 125/250 VAC, UL Recognized
• Mounting Screws: Stainless Steel 6-32 x 1"" And 8-32 x 1""; Allen Head Size 5/64""
• Dimensions: 1.75"" Width x 4.5"" Height x 0.62"" Depth
