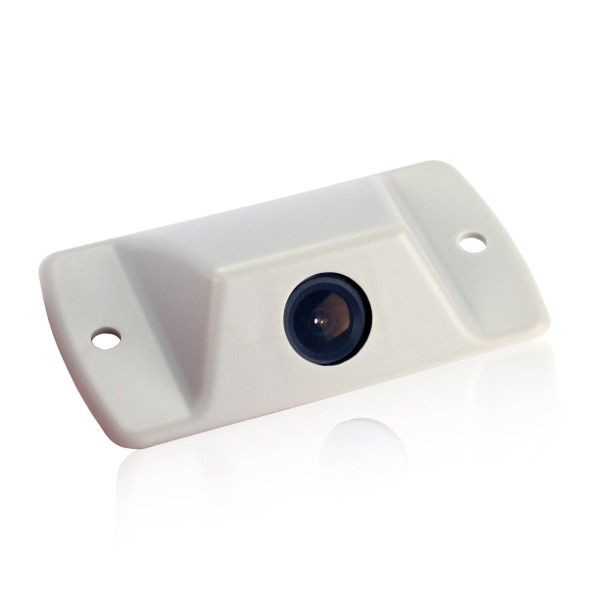

BEA Jamb-Mounted Color Camera System with Housing & Power Supply - 10JAMBCAM

Key Features:

• Visual coverage of door threshold with wide angle lens for full door and traffic flow view
• Low profile design to minimize accidental damage
• Easy installation with integrated voltage regulator
• High resolution full-color video (480 x 720, 480p)
• RCA video output compatible with most existing surveillance systems
• Designed specifically for monitoring pedestrian door usage and traffic flow
• Discreet form factor to assist in loss prevention and liability reduction

Specifications:

• Supply Voltage: 6.6 - 36 VDC ~10%; 6.0 - 28 VAC ~10%
• Operating Temperature: -22 - 140 F (RH 95% max) / -30 - 60 C
• Video Output: 1.0 Vp-p / 75 ohm
• Image Sensor: CMOS
• Horizontal Resolution: 480 TVL
• NTSC Output: 720 (H) x 480 (W)
• Sync System: Inter-Sync
• Frame Rate: 30 fps
• Minimum Illumination: 0.01 LUX
• AE Control: Auto
• Gain Control: Auto
• Electronic Shutter: 1 s - 1/10,000 s
• S/N Ratio: > 50 dB
• AWB: Auto
• Dimensions: 1 3/4" (W) x 3" (H) x 3/4" (D)
