Details

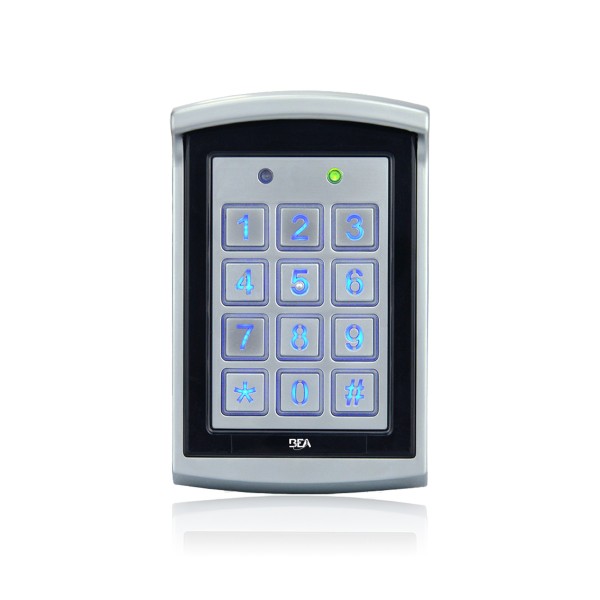

BEA Universal Indoor/Outdoor Keypad - 10KEYPADU

Key Features:

• Rugged universal keypad designed for both indoor and outdoor access control environments
• Supports up to 500 user codes with programmable access levels for enhanced security flexibility
• Weather-resistant and vandal-resistant construction ensures dependable performance in all conditions
• Illuminated keys improve visibility in low-light areas for reliable user operation
• Can operate in either standalone mode or as part of a larger access control system

Specifications:

• Technology: Digital keypad with non-volatile memory for user code retention
• User Capacity: Up to 500 unique PIN codes
• Power Supply: 12 to 24V AC/DC
• Current Draw: 120 mA maximum at 12V DC
• Relay Output: One SPDT relay rated 3A at 24V DC
• Output Time: Adjustable from 1 to 99 seconds or toggle mode
• Mounting: Surface-mount, single-gang electrical box compatible
• Material: Zinc alloy housing with weather-sealed electronics
• Operating Temperature Range: -22 F to +140 F (-30 C to +60 C)
• Ingress Protection: IP65 rated for outdoor use
• Keypad Illumination: Backlit silicone keys
• Dimensions: Approximately 4.5" x 2.75" x 1"
