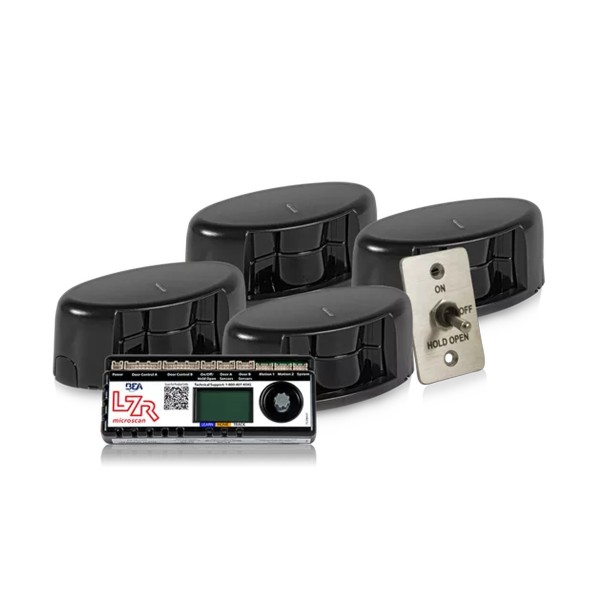

BEA Double Universal Microscan Sensor Kit with Power Supply & Door Loop - 10LZRMICROSCAN2UT

Key Features:

• Laser-based Time-of-Flight Sensor System with High-Resolution Coverage for Single Swing Doors
• Includes Power Supply Module and Transfer Loop for Simplified Installation and Door-Mounted Setup
• Background Independent Detection Zones Automatically Adapt to Door Movement for Reliable Performance
• Gyroscope-Assisted Door Position Sensing Ensures Coverage in All Door States - Closed, Opening, Open, Closing
• Fully Monitored System with Internal Diagnostics and External Monitoring Capability - UL 10B/10C Fire Rated

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Detection Mode: Presence
• Minimum / Maximum Door Width: 20 in to 48 in
• Mounting Height: 75 in to 98 in
• Remission Factor: > 2 Percent
• Angular Resolution: 2.56 Degrees
• IR Laser Wavelength: 905 nm - Maximum Output Pulse Power: 35 W (Class 1)
• Supply Voltage: 12 to 30 VDC
• Power Consumption: Less Than 15 W
• Response Time: Typical 40 ms - Maximum 80 ms
• Outputs: 4 Electro-Mechanical Relays (Galvanic Isolated, Polarity Free)
• Operating Temperature Range: -13 F to 121 F
• Degree of Protection: Hub: IP20 / NEMA 1 - Sensor: IP53 / NEMA 3
• Humidity: 0 Percent to 95 Percent Non-Condensing
• Vibrations: Less Than 2 G
• Material / Color: PC / ASA - Black
