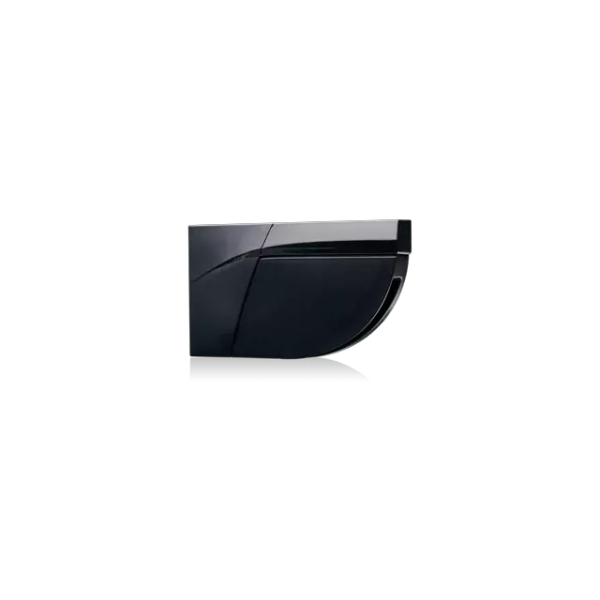

BEA LZR-Flatscan Swing Door Sensor Only (Left Side, Black) - 10LZRFLATSCAN-LB

Key Features:

• Laser-based Time-of-Flight Sensor for Swing Doors
• Single-Curtain Detection Covering Door Leaf and Hinge Area
• Low-Profile Black Housing Designed for Left-Side Mounting
• Independent of Reflective Floors, Wet Surfaces or Guide Rails
• Fast Response Time Suitable for High-Traffic Entrances

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Detection Mode: Presence
• Maximum Detection Range: 13 ft (Diagonal) with Reflectivity of 2 Percent
• Opening Angle - Door Leaf Safety: 90 Degrees; Pinch Zone Safety: 16 Degrees
• Angular Resolution - Door Leaf Safety: 1.3 Degrees; Pinch Zone Safety: 0.2 Degrees
• Typical Minimum Object Size - Door Leaf Safety: 4 in @ 13 ft; Pinch Zone Safety: 3/4 in @ 13 ft
• Supply Voltage: 12-24 VDC ~15 Percent
• Power Consumption: Less Than 2 W
• Response Time - Door Leaf Safety: Maximum 50 ms; Pinch Zone Safety: Maximum 90 ms
• Outputs: 2 Electronic Relays (Galvanic Isolation - Polarity Free)
• Maximum Switching Voltage: 42 VAC/VDC
• Maximum Switching Current: 100 mA
• Dimensions: 5.5 in (W) x 3.33 in (H) x 1 in (D)
• Material / Color: PC/ASA - Silver
• Tilt Angles: 2 - 10 Degrees (Without Mounting Bracket)
• Degree of Protection: IP54 (IEC 60529)
• Operating Temperature Range: -22 F to 140 F
• Humidity: 0 Percent to 95 Percent Non-Condensing
• Vibrations: Less Than 2 G
