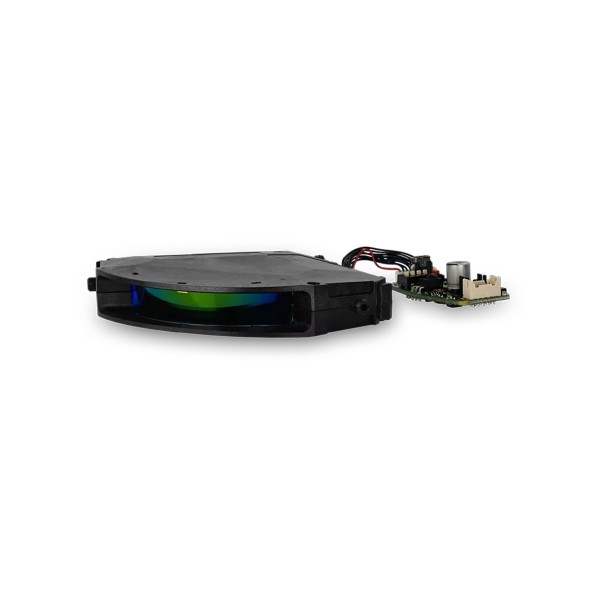

BEA LZR-Flatscan U952 Compact Laser Scanner for Raw Data Applications - 10LZRFLATSCAN-U952

Featuring a single curtain for robotics, AVG, and AMR systems, the BEA LZR-Flatscan U952 Compact Laser Scanner for Raw Data Applications is a perfect choice. Capturing up to 400 configurable data points per scan, this sensor accurately maps out any space. With its compact design and low power consumption, the scanner helps reduce electricity costs. The BEA LZR-Flatscan U952 Compact Laser Scanner for Raw Data Applications offers a wide range of coverage with a 180 Degree view, making it ideal for indoor and controlled environments.

Features:

• Compact Single-Curtain Laser Scanner Designed for Raw Data Applications
• Wide Angular Coverage Up to 108 Degrees and Minimum Angular Resolution of 0.18 Degrees
• RS-485 Full-Duplex Communication Allows Integration into AGV, AMR, and Portal Systems
• High-Resolution Output with Up to 400 Configurable Points per Curtain

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Dimensions: 5.5 in (L) x 3.33 in (H) x 1 in (D)
• Power Consumption: Less Than 2 W ; Peak Current at Power-On: 0.8 A (Max 20 ms @ 24 V)
• Cable Length: 8 ft 1/4 in (2.5 m) ; Connector: DF11-6DS-2C
• Response Time: Measurements Refreshed Every 10.75 ms @ Angular Resolution ~ 0.74 Degrees ; 43 ms @ Angular Resolution Approx. 0.74 Degrees
• Number of Points per Plane: Max 400 pts
