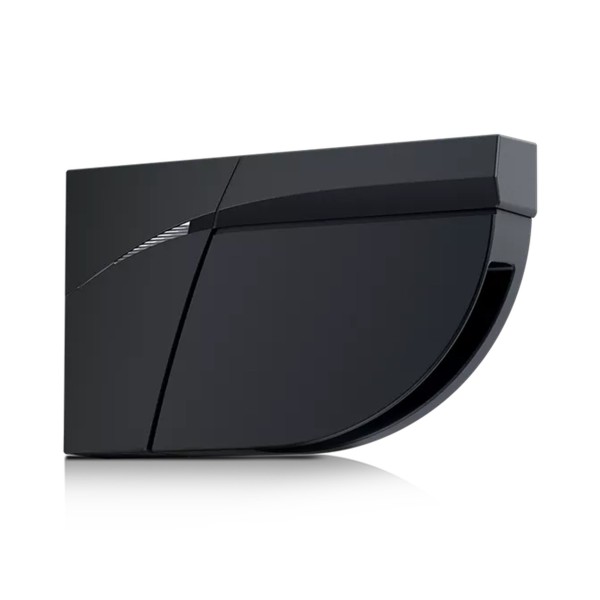

BEA LZR-Flatscan Automated Window Sensor (Left, Black) - 10LZRFLATSCAN-WLB

Key Features:

• Laser Time-of-Flight Sensor with Background Analysis for Automated Windows
• Single Curtain Detection Field Covering the Entire Window Leaf and Frame in One Module
• Low-Profile Black Housing Designed for Left-Side Mounting in Window Openings
• Teach-In Setup via Hand Gesture or Remote Control for Quick Commissioning
• Virtual Push Button Functionality for Touch-Free Activation of Window Movement

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement, Background Analysis
• Detection Mode: Presence
• Maximum Detection Range: 13 ft (Diagonal) at 2 % Reflectivity
• Number of Curtains: 1
• Measurement Points: 400
• Angular Resolution: 0.27 Degrees
• Angular Coverage: 110 Degrees
• Minimum Object Size: 3/4 in (Depending on Settings and Installation)
• Supply Voltage: 12-24 VDC ~15 Percent
• Power Consumption: Approx. 2 W
• Typical Response Time: 400 ms
• Peak Current at Power-On: 0.8 A (Max 20 ms at 24 VDC)
• Cable Length: 16.4 ft
• Outputs: 2 Solid-State Relays (Galvanic Isolation - Polarity Free)
• Maximum Switching Voltage: 42 VAC/VDC
• Maximum Switching Current: 100 mA
• Input: 1 Optocoupler (Galvanic Isolated - Polarity Free)
• Maximum Contact Voltage (Input): 30 VDC (Over-Voltage Protected)
• LED Signals: 1 Tri-Coloured LED - Detection/Output Status
• Dimensions: 5.6 in (L) x 3.34 in (H) x 1.33 in (D) (Mounting Base Adds 0.5 in)
• Material / Color: PC/ASA - Black
• Tilt Angles: -2 Degrees to +6 Degrees (With Mounting Base); +2 Degrees to +10 Degrees (Without Mounting Base)
• Protection Degree: IP54 (IEC 60529)
• Operating Temperature Range: -22 F to 140 F
• Humidity: 0 % to 95 % Non-Condensing
• Vibrations: Less Than 2 G RMS
