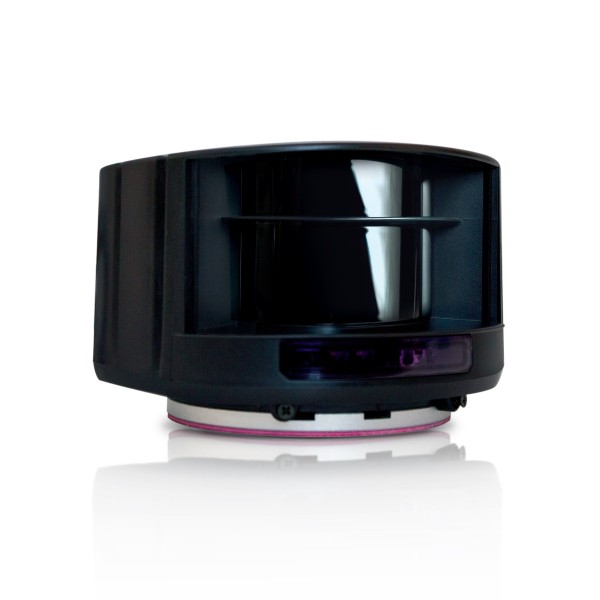

BEA LZR-Flatscan U920 Bidirectional 4-Curtain Laser Sensor - 10LZRU920

Designed to be installed to scan in any direction, the BEA LZR-Flatscan U920 Bidirectional 4-Curtain Laser Sensor is a great choice for any environment. Featuring a 4 curtain laser scanner, this scanner offers a wide measurement range. Enclosed in an industrial enclosure, the BEA LZR-Flatscan U920 Bidirectional 4-Curtain Laser Sensor is perfect for harsh indoor or outdoor environments.

Features:

• Wide Measurement Range with Flexible Plane Configuration Up to Four Planes
• Industrial-Grade Enclosure with IP65 Rating
• Raw-Data Output via RS-485 Communication Interface for Custom Integration into AGV/AMR and Automation Systems
• Background-Independent Detection with No Requirement for Reflective Targets or Guide Rails

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Power Consumption: Less Than 5 W
• Dimensions: 5.00 in (Diameter) x 3.66 in (Width) x 2.75 in (Height)
• Cable Length: 10 ft (3 m)
• Number of Points per Plane: Up to 274
• Peak Current at Power-On: 1.8 A (Max 80 ms @ 35 V)
