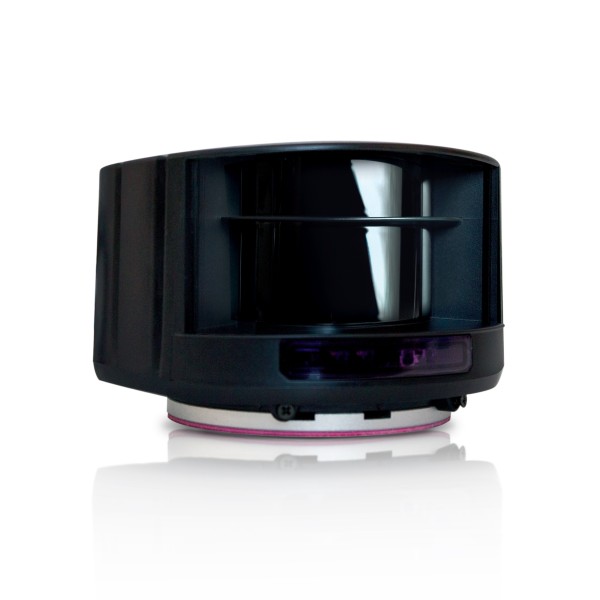

BEA LZR-Flatscan U921 Bidirectional Single-Curtain Laser Sensor - 10LZRU921

Designed to be installed to scan in any direction, the BEA LZR-Flatscan U921 Bidirectional Single-Curtain Laser Sensor is a great choice for any environment. Featuring a single curtain laser scanner, this scanner offers a wide measurement range. Enclosed in an industrial enclosure, the BEA LZR-Flatscan U921 Bidirectional Single-Curtain Laser Sensor is perfect for harsh indoor or outdoor environments.

Features:

• Bidirectional Laser Time-of-Flight Scanner with Single Curtain Detection Field
• Wide Measurement Range with Adjustable Scanning Parameters
• Background-Independent Detection That Does Not Rely on Reflective Targets or Guide Rails
• Raw-Data Output via RS-485 Communication Interface for Custom Integration and Automation Projects

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Dimensions: 5 in (W) x 2.75 in (H) x 3.66 in (D)
• Cable Length: 10 ft (3 m)
• Power Consumption: Less Than 5 W - Peak Current at Power-On: 1.8 A (Max 80 ms @ 35 V)
• Measurement Range: Maximum 213 ft (65 m) ; Approximately 30 ft (10 m) at 2 Percent Remission Factor - Approximately 98 ft (30 m) at 10 Percent Remission Factor
• Number of Points per Plane: Up to 274
