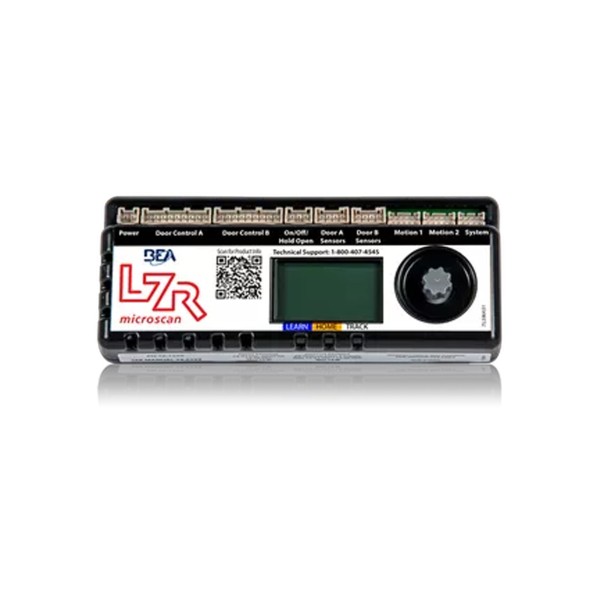

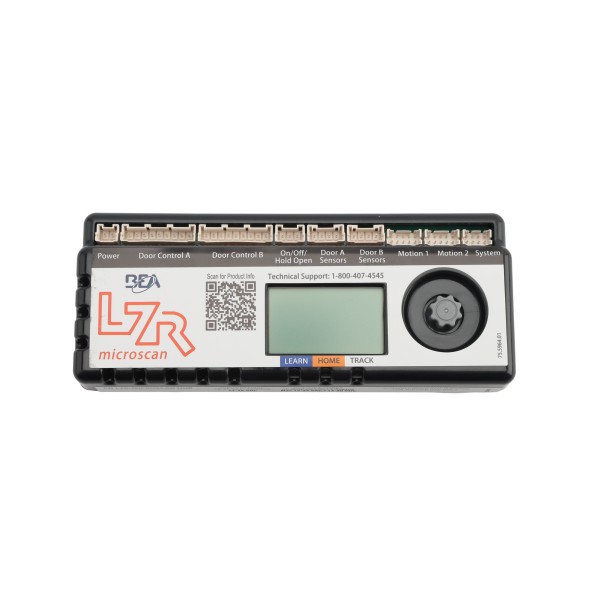

BEA LZR-Microscan Hub Replacement Unit Only - 10LZRMICROSCANHUB

Key Features:

• Replacement Hub Unit Designed for the LZR-Microscan T System for Swing Doors
• Supports Full System Diagnostics, Monitoring and Setup via On-board LCD and Remote Control
• Plug-and-Play Connectivity with Sensor Modules and Door Control Harnesses
• Background Independent Detection via Laser Time-of-Flight Technology when Paired with Sensors
• Compact Enclosure Designed for Door Header Mounting with Easy Access for Service

Specifications:

• Technology: Laser Scanner, Time-of-Flight Measurement
• Detection Mode: Presence
• Minimum / Maximum Door Width: 20 in to 48 in
• Mounting Height: 75 in to 98 in
• Remission Factor: Greater Than 2 Percent
• Angular Resolution: 2.56 Degrees
• Emission Characteristics: IR Laser Wavelength 905 nm; Maximum Output Pulse Power 35 W (Class 1)
• Supply Voltage: 12 to 30 VDC (Class II, 15 W Max)
• Power Consumption: Less Than 15 W
• Response Time: Typical 40 ms; Maximum 80 ms
• Degree of Protection: Hub: IP20 / NEMA 1
• Operating Temperature Range: -13 F to 121 F (-25 C to +55 C)
• Humidity: 0 Percent to 95 Percent Non-Condensing
• Vibrations: Less Than 2 G
• Material / Color: PC / ASA - Black
