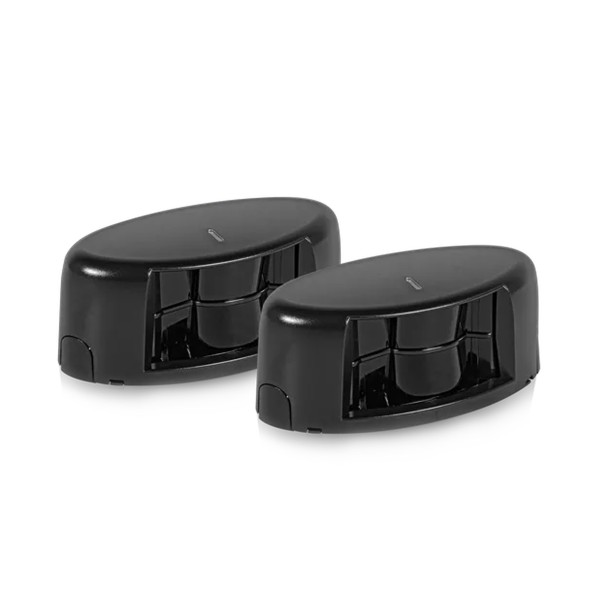

BEA LZR-Microscan 1-Door Kit with 2 Microscan Sensors - 10LZRMICROSCAN1T

Key Features:

• Laser-based Time-of-Flight Sensor System with Dual Microscan Sensors for Single Door Coverage
• Background Independent Detection Zones That Eliminate Nuisance Alerts Caused by Floor or Weather Conditions
• Gyroscope-Assisted Door Position Sensing for Fully Accurate Coverage in All Door States (Closed, Opening, Open, Closing)
• High-Resolution Adaptive Patterns That Exceed ANSI 156.10 8.2.2.3 Standards for Swing Doors
• Plug-and-Play Hub Architecture with Intuitive LCD Menu and Simple Install Process for Reduced Setup Time

Specifications:

• Technology: LASER Scanner, Time-of-Flight Measurement
• Detection Mode: Presence
• Minimum / Maximum Door Width: 20 in to 48 in
• Mounting Height: 75 in to 98 in
• Remission Factor: Greater Than 2 Percent
• Angular Resolution: 2.56 Degrees
• IR Laser Wavelength: 905 nm - Maximum Output Pulse Power: 35 W (Class 1)
• Supply Voltage: 12 to 30 VDC
• Power Consumption: Less Than 15 W
• Response Time: Typical 40 ms - Maximum 80 ms
• Outputs: 4 Electro-Mechanical Relays (Galvanic Isolated, Polarity Free)
• Operating Temperature Range: -13 F to 121 F
• Degree of Protection: Hub: IP20 / NEMA 1 - Sensor: IP53 / NEMA 3
• Humidity: 0 Percent to 95 Percent Non-Condensing
• Vibrations: Less Than 2 G
