Details

BEA Magic Wave to Open Double Gang Touchless Restroom Kit with Power Supply Cabinet - 10MSRR-DGPS

Key Features:

• Complete touchless restroom control kit designed for single-occupancy restrooms with a built-in power supply cabinet for simplified installation
• Includes "Wave to Open" and "Wave to Lock" double gang actuators, logic module, power supply, and door position switch for fully automated door operation
• Dual-color LED indicators provide clear red/green status feedback to show restroom availability and lock state
• Microwave motion sensing technology allows reliable contact-free activation to improve hygiene and accessibility
• Factory-assembled power supply enclosure reduces setup time and provides a secure electrical connection point
• Ideal for hospitals, offices, schools, and public restrooms requiring ADA-compliant automatic door access control

Specifications:

• Power Input: 120 VAC to 12/24 VDC via included power supply cabinet
• Logic Module Voltage: 12 to 24 VAC/VDC ~10% tolerance
• Relay Outputs: Two dry contacts rated up to 3 A at 24 VAC or 30 VDC; one wet contact rated at 1 A
• Sensor Type: Microwave motion sensor, adjustable detection range up to 23"
• Operating Frequency: 24.15 GHz nominal
• Temperature Range: -15 F to 150 F (-26 C to +65 C)
• Enclosure: IP65 rated when properly sealed with silicone

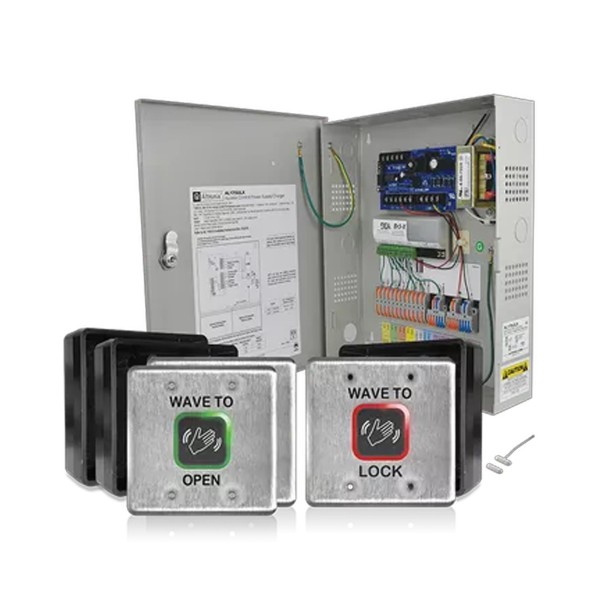

• Kit Components: Two touchless actuators, logic control module, power supply cabinet, door position switch, and connection harness
• Mounting Style: Double gang actuator plates compatible with standard wall boxes
