Details

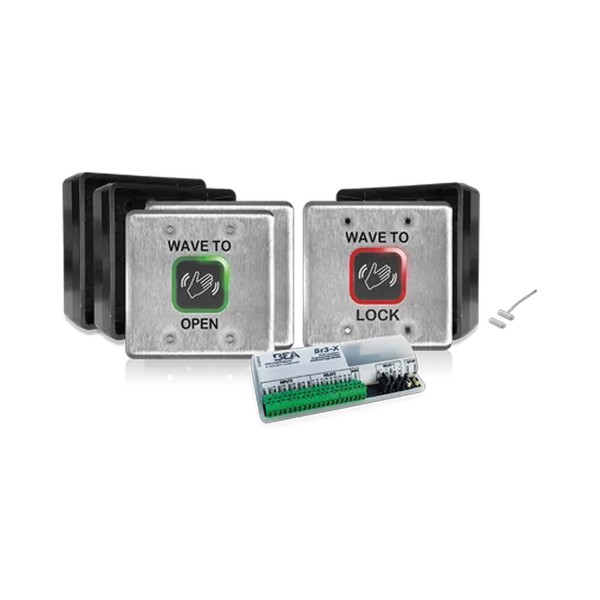

BEA Magic Wave to Open Double Gang Touchless Restroom Kit - 10MSRR-D

Key Features:

• Touchless restroom kit designed for single-occupancy, normally locked or unlocked restrooms
• Includes exterior and interior touchless "wave to open" and "wave to lock" actuators plus a logic module and door position switch
• Provides red/green LED status indicators and optional buzzer to clearly show door availability and lock status
• Microwave motion sensing ensures reliable contact-free activation, reducing surface touchpoints in high traffic restrooms
• Pre-configured kit simplifies ordering and installation by including the major components in one box

Specifications:

• Supply Voltage: 12 to 24 VAC or VDC with ~10% tolerance
• Current Consumption of Logic Module: 30 to 130 mA in DRY output configuration
• Input Channels: Four switch inputs plus one WET input
• Contact Ratings: Relay 1 (DRY) and Relay 2 (DRY) rated up to 3 A at 24 VAC or 30 VDC; Relay 1 (WET) rated 1 A
• Operating Temperature: -15 F to 150 F (-26 C to +65 C) for logic module; sensor detection range up to 23" adjustable
• Detection Technology: Microwave motion sensor operating at approximately 24.15 GHz
• Dimensions of Logic Module: 5.2" wide x 2.2" high x 1"
• Enclosure Rating: IP65 achieved when all drilled holes are properly sealed with silicone and mounting instructions are followed
