BEA Magic Wave to Open Single Gang Touchless Restroom Kit - 10MSRR-S

Key Features:

• Touchless single gang restroom control kit designed for single-user restrooms where accessibility and hygiene are priorities
• Includes "Wave to Open" and "Wave to Lock" single gang actuators, a logic control module, and a door position switch for a complete contact-free solution
• LED indicators provide clear red and green visual feedback for restroom availability and door lock status
• Microwave motion detection ensures reliable hands-free activation while reducing the spread of germs
• Compact single gang configuration fits standard wall boxes, ideal for space-limited installations
• Simple plug-and-play wiring makes setup fast and minimizes the need for additional components

Specifications:

• Operating Voltage: 12 to 24 VAC/VDC ~10% tolerance
• Relay Output Ratings: Two dry contacts rated 3 A at 24 VAC or 30 VDC, and one wet contact rated 1 A
• Input Channels: Four low-voltage switch inputs plus one WET input
• Detection Range: Adjustable up to 23" for reliable activation
• Operating Frequency: 24.15 GHz microwave sensor technology
• Temperature Range: -15 F to 150 F (-26 C to +65 C)
• Logic Module Dimensions: 5.2" x 2.2" x 1"
• Enclosure Rating: IP65 when sealed properly with silicone

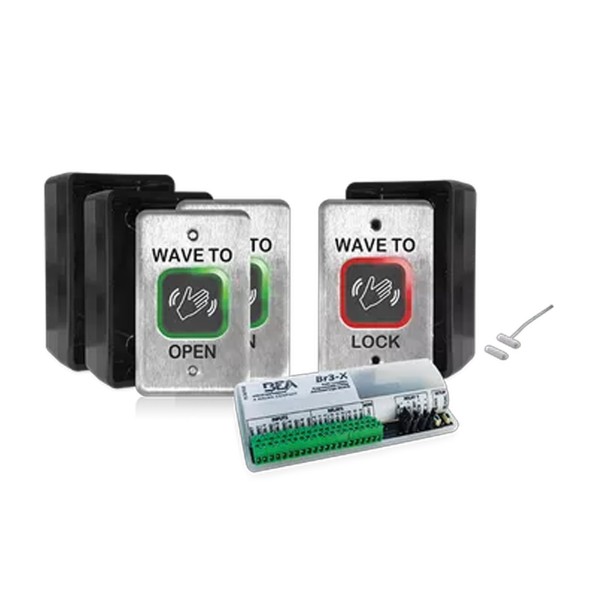

• Kit Components: Two single gang touchless actuators, control logic module, and door position switch
