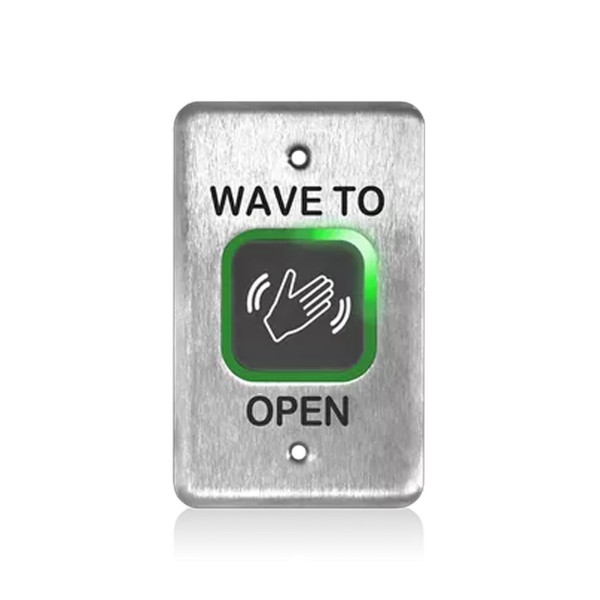

BEA Magic "Wave to Open" Single Gang Actuator (Text & Logo, Stainless Steel) - 10MS41-S

Key Features:

• Touchless BEA MAGIC Switch actuator designed for automatic door activation without physical contact
• Single-gang stainless steel faceplate with "Wave to Open" text and accessibility logo for ADA-compliant entrances
• Microwave Doppler radar sensor ensures precise motion detection and hands-free operation
• Adjustable sensing range from 4 to 24" for customized activation distance
• Output hold time adjustable between 0.5 and 30 seconds for optimal door control timing
• Integrated LED visual indicator and optional audible feedback for clear activation confirmation
• Sealed design with IP55 rating, upgradeable to IP65 for enhanced resistance to dust and moisture in demanding areas

Specifications:

• Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable 4 to 24"
• Frequency: 24.125 GHz, radiated power below 5 mW/cm sq.
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay, rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradable to IP65)
• Faceplate Dimensions: Standard single-gang stainless steel plate
• Faceplate Material: Stainless steel with "Wave to Open" text and accessibility logo
