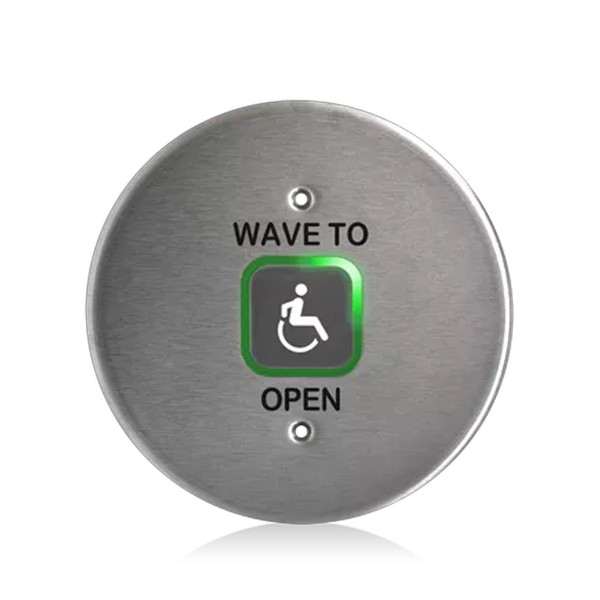

BEA Touchless Magic "Wave to Open" Actuator 6" Round Plate (Text & Accessibility Logo, Stainless Steel) - 10MS41-RA

Key Features:

• Hands-free BEA MAGIC Switch actuator designed for automatic door activation using touchless motion detection
• Constructed with a 6-inch round stainless steel faceplate featuring both "Wave to Open" text and accessibility logo for ADA-compliant use
• Microwave Doppler radar sensing technology ensures consistent activation without physical contact
• Adjustable detection range between 4 and 24" accommodates different areaal conditions and user distances
• Output hold time adjustable from 0.5 to 30 seconds for custom door activation duration
• Includes LED indicator and optional audible feedback for enhanced user feedback and visibility
• IP55-rated protection from dust and moisture, with optional sealing available to achieve IP65 protection

Specifications:

• Technology: Microwave Doppler radar detection
• Detection Range: Adjustable between 4 and 24"
• Frequency: 24.125 GHz, radiated power below 5 mW/cm sq.
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay, rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable from 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradable to IP65)
• Faceplate Dimensions: 6-inch round stainless steel plate
• Faceplate Material: Stainless steel with "Wave to Open" text and accessibility logo
