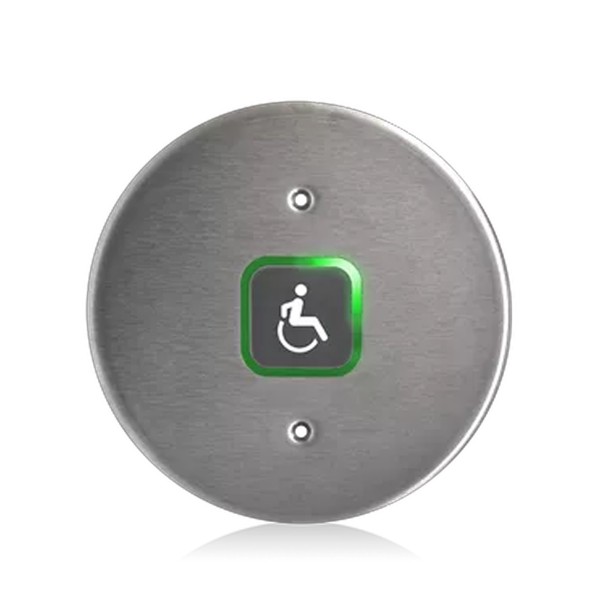

BEA Touchless Magic Wave to Open Actuator 6" Round Plate (Accessibility Logo Only, Stainless Steel) - 10MS41-RPAL

Key Features:

• Hands-free BEA MAGIC Switch actuator designed for automatic door activation through touchless motion sensing
• 6-inch round stainless steel faceplate featuring an accessibility logo only, ideal for ADA-compliant entrances
• Microwave Doppler radar technology enables reliable motion detection for hygienic activation
• Adjustable detection range from 4 to 24 inches allows flexibility in sensitivity and placement
• Output hold time configurable between 0.5 and 30 seconds for precise door control timing
• Includes LED indicator and optional audible feedback to signal activation clearly
• IP55-rated housing resists dust and moisture, with optional sealing to achieve IP65 protection for outdoor environments

Specifications:

• Technology: Microwave Doppler radar detection
• Detection Range: Adjustable 4 to 24 inches
• Frequency: 24.125 GHz, radiated power below 5 mW/cm sq
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay, rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradable to IP65)
• Faceplate Dimensions: 6-inch round stainless steel plate
• Faceplate Material: Stainless steel with accessibility logo only
