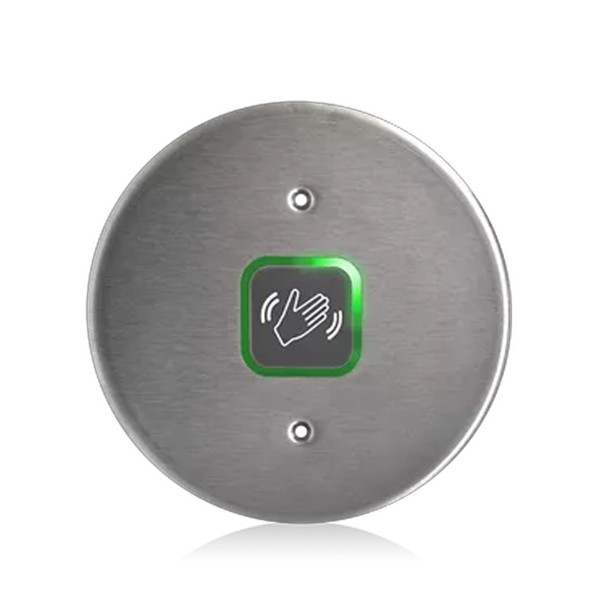

BEA Touchless Magic Wave to Open Actuator 6" Round Plate (Logo Only, Stainless Steel) - 10MS41-RPHL

Key Features:

• Touchless BEA MAGIC Switch actuator provides hygienic and convenient activation for automatic doors
• 6-inch round stainless steel faceplate with logo-only design for a modern appearance
• Uses microwave Doppler radar sensing technology for reliable, contact-free motion detection
• Adjustable detection range from 4 to 24" ensures compatibility with various installation areas
• Output hold time adjustable between 0.5 and 30 seconds, offering precise control of activation duration
• Integrated LED indicator and optional audible feedback confirm sensor activation to users
• Rated IP55 for dust and moisture resistance, with optional sealing available for IP65 rating in demanding areas

Specifications:

• Technology: Microwave Doppler radar motion detection
• Detection Range: Adjustable between 4 and 24"
• Frequency: 24.125 GHz, radiated power below 5 mW/cm sq.
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay, rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable between 0.5 and 30 seconds
• Power Consumption: Below 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradable to IP65 with sealing)
• Faceplate Dimensions: 6-inch round stainless steel plate
• Faceplate Material: Stainless steel with logo-only design
