Details

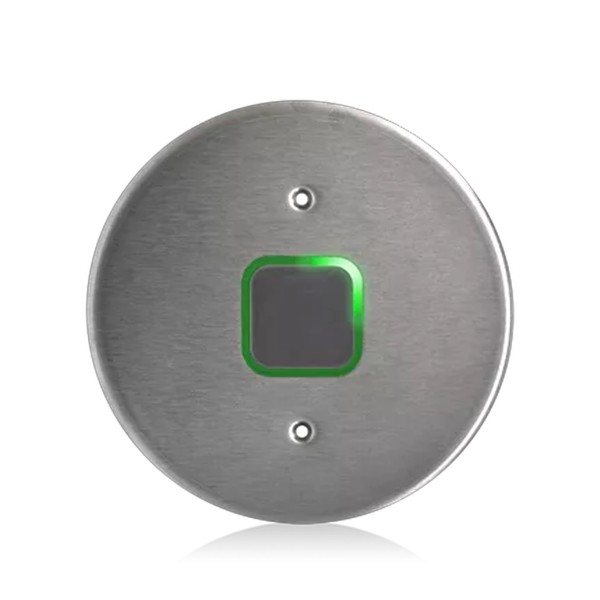

BEA Touchless Magic "Wave to Open" Actuator 6" Round Plate (Stainless Steel) - 10MS41-RP

Key Features:

• Touchless BEA MAGIC Switch actuator provides hands-free activation for automatic doors, improving accessibility and hygiene
• Designed with a 6-inch round stainless steel faceplate for a modern, professional appearance suitable for any environment
• Microwave Doppler radar sensor detects motion accurately for contact-free activation
• Adjustable detection range from 4 to 24 inches to meet specific installation needs and sensitivity preferences
• Customizable output hold time between 0.5 and 30 seconds for precise control of door activation duration
• Visual LED indicator and optional audible feedback provide confirmation of activation
• IP55-rated enclosure protects against dust and moisture, upgradeable to IP65 with sealing kit for outdoor or industrial use

Specifications:

• Technology: Microwave Doppler radar detection
• Detection Range: Adjustable 4 to 24 inches
• Frequency: 24.125 GHz, radiated power below 5 mW/cm sq
• Power Supply: 12 to 24 VAC ~10% or 12 to 24 VDC +30%/-10%
• Relay Output: Form C relay, rated 1 A at 125 VAC or 60 VDC
• Output Hold Time: Adjustable from 0.5 to 30 seconds
• Power Consumption: Less than 1.5 W
• Operating Temperature: -4 F to 131 F (-20 C to +55 C)
• Enclosure Rating: IP55 (upgradable to IP65)
• Faceplate Dimensions: 6-inch round stainless steel plate
• Faceplate Material: Stainless steel, blank design with no text or logo
